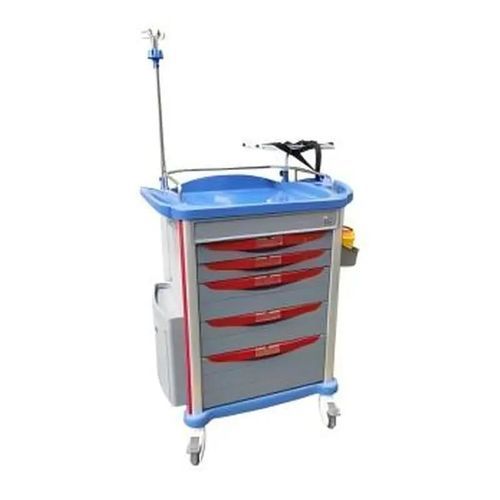

Emergency trolley FY-ET750-A

storagemedicine distributionfor intravenous procedures

Description
This emergency trolley is a multi-functional medical cart designed for hospital emergency rescue, clinical medication management and ward nursing workstations. It uses an aluminum alloy profile frame and a 1.0 mm electrolytic-plate steel-plastic composite cabinet body with antibacterial electrostatic powder coating. The one-piece blow-moulded ABS worktop supports optional stainless steel guardrails. Drawers adopt a full ABS modular design with removable internal dividers. The unit includes a front-mounted central lock, left-side writing board and document box, and right-side storage accessories (side-hung box, sharps containers, waste bins). Mobility is provided by four plug-in Φ100 mm anti-winding swivel casters (2 braked). Net weight 38 KG and packed dimensions and gross weight are provided for shipment.

Features

• Aluminum alloy profile frame for compact, rigid structure.
• 1.0 mm electrolytic-plate steel-plastic composite cabinet body with antibacterial electrostatic powder coating.
• One-piece blow-moulded ABS worktop and guardrail base; optional stainless steel guardrails available.
• Front-mounted central locking for single-step secure closure.
• Left-side writing board and document box for record keeping; right-side pre-installed side-hung box, sharps containers and waste bins for classified disposal.
• Five-drawer layout (2 small, 2 medium, 1 large) with removable dividers and 3-section ball-bearing silent slides for smooth, quiet operation.
• Four plug-in Φ100 mm anti-winding swivel casters, 2 with brakes, for stable steering and flexible movement.
• Complete standard configuration covering storage, emergency rescue tools, waste disposal and power supply.
• Independent packaging with clear packaging dimensions and gross weight information.

Specifications

• Model: FY-ET750-A
• Overall dimensions: 750 × 480 × 940 mm
• Frame: Aluminum alloy profile frame
• Cabinet body: 1.0 mm electrolytic plate, steel-plastic composite
• Surface treatment: Antibacterial electrostatic powder coating
• Worktop & drawer base: One-piece blow-moulded ABS (optional stainless steel guardrails)
• Drawers: 5 total (2 small, 2 medium, 1 large), full ABS modular design, removable dividers
• Drawer slides: 3-section ball-bearing silent slides
• Casters: Four Φ100 mm plug-in anti-winding swivel casters (2 braked)
• Small drawer outer/inner/panel height: 479×390×68 mm / 424×330×50 mm / 68 mm
• Medium drawer outer/inner/panel height: 479×390×138 mm / 424×330×110 mm / 138 mm
• Large drawer outer/inner/panel height: 479×390×208 mm / 424×330×175 mm / 208 mm

Standard accessories

• 2 small drawers, 2 medium drawers, 1 large drawer
• Writing board ×1
• Document box ×1
• Side-hung box ×1
• Sharps containers ×2
• Waste bins ×2
• Rotating tray ×1
• Telescopic infusion pole set ×1
• Oxygen cylinder bracket ×1
• Resuscitation board ×1
• 220V power socket set with cable ×1

Packaging & Weight

• Packaging dimensions: 780 × 550 × 910 mm
• Net weight: 38 KG
• Packed gross weight: 42.6 KG
