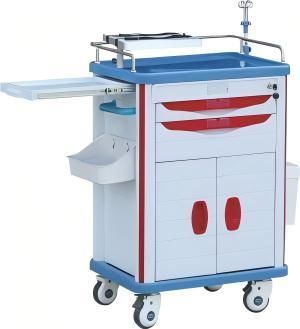

Emergency trolley FY-ET008H

hospitalfor medicinestorage

Product overview
This compact emergency trolley is a lightweight medical cart designed for hospital emergency response, ward medication storage and routine clinical nursing operations. The main body and drawers are manufactured from ABS engineering plastic using an all‑ABS modular drawer design. The worktop is fitted with a welded three‑sided Φ12 stainless steel guardrail and a side‑mounted central locking device for easy operation. The trolley includes 1 small drawer and 1 medium drawer with built‑in detachable dividers and 3‑section ball‑bearing silent slides. The lower compartment combines drawers and a cabinet door with 420 mm cabinet height. Standard rescue accessories are supplied and the unit rides on four Φ100 mm anti‑winding swivel casters (2 with brakes). Trolley is shipped in independent packaging with full dimensional and weight data.

Key features

• Main body and drawers in ABS engineering plastic with all‑ABS modular structure for lightweight, corrosion resistance and easy cleaning.
• Welded three‑sided worktop guardrail made from Φ12 stainless steel bars.
• Side‑mounted central locking device for simple and quick locking of drawers and cabinet.
• Drawer layout: 1 small drawer and 1 medium drawer with built‑in dividers for flexible organization.
• Drawers removable for assembly/disassembly; fitted with 3‑section ball‑bearing silent slides for smooth, quiet operation.
• Lower storage combines drawers and cabinet (420 mm cabinet height) for classified storage of medicines and instruments.
• Four Φ100 mm anti‑winding swivel casters (2 with brakes) for stable mobility and directional control.
• Complete set of standard accessories to support storage, emergency treatment and power supply.
• Compact overall size and low net weight (30.4 kg); packed with clear packaging dimensions and gross weight.

Technical specifications
Overall dimensions: 620×470×910 mm
Main material: ABS engineering plastic (main body and drawers)
Drawer structure: All‑ABS modular design
Worktop guardrail: Φ12 stainless steel welded three‑sided guardrail
Locking system: Side‑mounted central lock
Drawer configuration: 1 small drawer (outer 479×390×68 mm; inner 424×330×50 mm), 1 medium drawer (outer 479×390×138 mm; inner 424×330×110 mm)
Drawer slides: 3‑section ball‑bearing silent slides; drawers removable
Lower storage: Combined drawers and cabinet door; cabinet height 420 mm
Casters: Four Φ100 mm anti‑winding swivel casters, 2 with brakes

Included accessories

• Side‑hung box ×1
• Type B waste bin ×1
• Rotating tray ×1
• Telescopic infusion pole set ×1
• Oxygen cylinder bracket ×1
• Resuscitation board ×1
• 220V power socket set with cable ×1

Packaging & weight
Packaging dimensions: 740×550×1050 mm
Net weight: 30.4 KG
Packed gross weight: 36 KG
