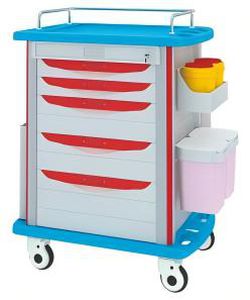

Hospital trolley MT750 series

for medicinenursingmedicine distribution

Overview
This medical delivery trolley is designed for hospital emergency rescue, ward medication storage and routine clinical nursing tasks. It features a composite structure of plastic, aluminum and steel, an integral ABS injection-molded worktop sized 750×480 mm, steel-plastic uprights and a three-sided guardrail made from Φ12 stainless steel bars. The unit includes a side writing board, a front central lock and a modular drawer system for classified storage.

Features

• Composite plastic, aluminum and steel construction for structural rigidity and compact layout.
• ABS injection-molded worktop (750×480 mm) with smooth surface for easy cleaning.
• Three-sided worktop guardrail welded from Φ12 stainless steel bars for edge protection.
• Side-mounted writing board for clinical documentation and front-mounted central locking for secure closure.
• Modular all-ABS drawers: 2 small, 2 medium and 1 large with built-in dividers for flexible partitioning.
• Drawers compatible with free disassembly and assembly; fitted with 3-section ball-bearing silent slides for smooth, quiet operation.
• Four Φ100 mm anti-winding swivel casters (2 with brakes) for flexible movement and stable steering.
• Standard clinical accessories supplied to support storage, waste segregation and document organization.
• Independent packaging with clear dimensional and weight data to facilitate logistics.

Specifications

• Overall dimensions: 750×480×930 mm
• Worktop: ABS injection-molded, 750×480 mm
• Main materials: Plastic, aluminum and steel composite structure
• Worktop guardrail: Φ12 stainless steel, three-sided
• Drawer configuration: 2 small (H: 68 mm) + 2 medium (H: 138 mm) + 1 large (H: 208 mm); all-ABS modular drawers
• Internal dividers: Built-in dividers for flexible partitioning
• Slide rails: 3-section ball-bearing silent slides
• Casters: Four Φ100 mm anti-winding swivel casters (2 with brakes)
• Standard accessories: 1 side-hung box, 2 sharps containers, 2 waste bins, 1 side-opening file box
• Packaging dimensions: 780×560×940 mm
• Net weight: 35.8 KG
• Packed gross weight: 41.4 KG

Accessories & packaging

• Included: 1 side-hung box, 2 sharps containers, 2 waste bins, 1 side-opening file box
• Mobility: 4 × Φ100 mm swivel casters (2 with brakes)
• Packing: Independently packed with provided packaging dimensions and gross weight for logistics handling
