Emergency trolley FY-CT750-02

medicalhospitalwaste

Overview

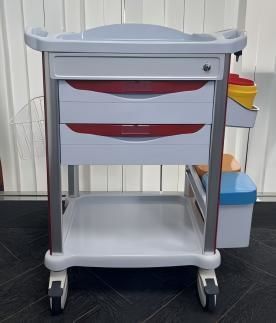

This emergency treatment trolley FY-CT750-02 is a multifunctional medical cart designed for hospital emergency rescue, clinical drug management and ward nursing stations. The structure combines plastic, high-strength aluminum alloy profiles and a 1.0 mm electrolytic steel-plastic cabinet treated with antibacterial electrostatic powder coating. It features a one-piece blow-molded ABS worktop, all-ABS modular drawers, a front central locking device and a left-side writing board. Standard accessories include a side-hung box, sharps containers, waste bins and a steel-plastic basket. Mobility is provided by four Φ100 mm anti-winding swivel casters (2 with brakes). Unit is delivered separately packaged with full packaging dimensions and weight data.

Features

• Composite construction: plastic, aluminum alloy frame and steel-plastic cabinet for compact layout and refined appearance.
• Cabinet body made of 1.0 mm electrolytic plate with antibacterial electrostatic powder coating for rust resistance and hygienic performance.
• One-piece blow-molded ABS worktop and guardrail base; drawers are full-ABS modular design for easy cleaning and maintenance.
• Front-mounted central locking device enabling single-step locking; left-side writing board for medical record documentation.
• Two medium drawers with built-in detachable dividers for flexible partitioning; drawers removable and fitted with 3-section ball-bearing silent slides for quiet, smooth operation.
• Four Φ100 mm anti-winding swivel casters including 2 braked casters for stable directional control and maneuverability.
• Standard configuration supports storage, waste disposal and nursing auxiliary functions to meet clinical workflow requirements.
• Ultra-light net weight (23.9 KG) and independent packaging with clear packed gross weight (27.9 KG) and dimensions for logistics planning.

Specification
Overall dimensions: 750×480×940 mm
Main materials: Plastic, aluminum and steel composite structure
Frame: High-quality aluminum alloy profiles
Cabinet body: 1.0 mm electrolytic plate (steel-plastic composite) with antibacterial electrostatic powder coating
Worktop & drawers: One-piece blow-molded ABS worktop; all-ABS modular drawers
Locking & side fittings: Front-mounted central lock; left-side writing board
Drawer layout: 2 medium drawers (outer 479×390×138 mm; inner 424×330×110 mm); panel height 138 mm
Drawer fittings: Built-in detachable dividers; drawers removable; 3-section ball-bearing silent slides
Casters: Four Φ100 mm anti-winding swivel casters (2 with brakes)
Standard accessories: side-hung box (1), sharps containers (2), waste bins (2), steel-plastic basket (1)
Packaging dimensions: 780×550×910 mm
Net weight: 23.9 KG; Packed gross weight: 27.9 KG

Technical data

• Model: FY-CT750-02
• Overall dimensions: 750×480×940 mm
• Main materials: Plastic, aluminum and steel composite
• Frame material: High-quality aluminum alloy profiles
• Cabinet thickness: 1.0 mm electrolytic plate (steel-plastic composite)
• Surface treatment: Antibacterial electrostatic powder coating
• Worktop: One-piece blow-molded ABS
• Drawer design: All-ABS modular; 2 medium drawers (outer 479×390×138 mm; inner 424×330×110 mm)
• Drawer slides: 3-section ball-bearing silent slides; drawers removable
• Locking: Front-mounted central lock
• Side accessory: Left-side writing board
• Casters: Four Φ100 mm anti-winding swivel casters (2 with brakes)
• Standard accessories: side-hung box (1), sharps containers (2), waste bins (2), steel-plastic basket (1)
• Packaging dimensions: 780×550×910 mm
• Net weight: 23.9 KG; Packed gross weight: 27.9 KG
