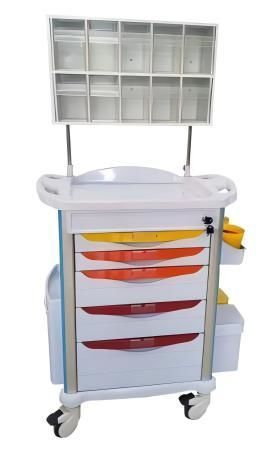

Operating room trolley FY-AT750-02

anesthesiastorageinfection control

Description
This multi-functional anesthesia trolley is designed for operating rooms, emergency departments and clinical wards to provide classified storage and rapid access to anesthetics, emergency medicines and medical instruments. Vertical columns use high-strength aluminum alloy profiles for compact dimensions and a refined appearance. The cabinet body is a 1.0 mm steel-plastic composite electrolytic plate with antibacterial electrostatic powder coating for corrosion resistance and easy disinfection. The worktop, guardrail and drawers use integrally blow-molded ABS for a seamless, easy-to-clean surface. A side-mounted central locking device secures all drawers.

Features

• High-strength aluminum alloy uprights: lightweight, rigid and compact.
• 1.0 mm electrolytic plate cabinet with antibacterial electrostatic powder coating: rust-resistant and disinfectant-friendly.
• Integral ABS worktop, guardrail and full ABS modular drawers for quick removal and cleaning.
• Side central locking for one-step locking of all drawers to improve drug safety management.
• Multi-height drawer configuration with removable dividers for flexible internal layout; three-section ball-bearing silent slides for smooth, low-noise operation.
• Hidden left-side auxiliary worktable provides an extra temporary workspace.
• Height-adjustable double-row gantry anesthesia rack with 10 transparent flip-top anesthesia boxes for classified drug storage and visibility.
• Four Φ100 mm anti-winding swivel casters (2 with brakes) for smooth movement and stable directional control.
• Complete accessories for document storage, waste separation and sharps management.
• Separated packaging for main cart and anesthesia boxes to facilitate logistics and on-site assembly; clear net/gross weight for shipment planning.

Specification
Overall dimensions: 750×480×940 mm
Vertical columns: High-quality aluminum alloy profiles
Cabinet body: 1.0 mm electrolytic plate with antibacterial electrostatic powder coating
Worktop & guardrail: Integrally blow-molded ABS
Drawer design: Full ABS modular drawers, detachable, with built-in adjustable dividers
Drawer layout: 2 small drawers (panel H: 68 mm) + 2 medium drawers (panel H: 138 mm) + 1 large drawer (panel H: 208 mm)
Slide rails: Three-section ball-bearing silent slides
Locking system: Side-mounted central locking device (locks all drawers)
Anesthesia rack: Height-adjustable double-row gantry with 10 transparent flip-top anesthesia boxes
Casters: 4 × Φ100 mm anti-winding swivel casters (2 with brakes)
Standard accessories: 1 document box, 1 side-hung box, 2 sharps containers, 2 Type B waste bins, 1 double-layer anesthesia box frame set
Packaging: Main cart package 800×550×920 mm; anesthesia boxes packed individually
Net weight: 45 KG; Gross weight: 50 KG

Technical specifications

• Model: FY-AT750-02
• Cart dimensions: 750 × 480 × 940 mm
• Vertical columns: Aluminum alloy profiles
• Cabinet material: 1.0 mm electrolytic plate with antibacterial powder coating
• Worktop & guardrail material: Integrally blow-molded ABS
• Drawer design: Full ABS modular, detachable, adjustable dividers
• Drawer configuration: 2 × small (panel H 68 mm), 2 × medium (panel H 138 mm), 1 × large (panel H 208 mm)
• Drawer slides: Three-section ball-bearing silent slides
• Locking: Side-mounted central locking device
• Anesthesia rack: Height-adjustable double-row gantry with 10 transparent flip-top boxes
• Casters: 4 × Φ100 mm anti-winding swivel casters (2 with brakes)
• Standard accessories: Document box, side-hung box, 2 sharps containers, 2 Type B waste bins, double-layer anesthesia box frame set
• Packaging: Main cart 800×550×920 mm; anesthesia boxes packed separately
• Net weight: 45 KG; Gross weight: 50 KG
