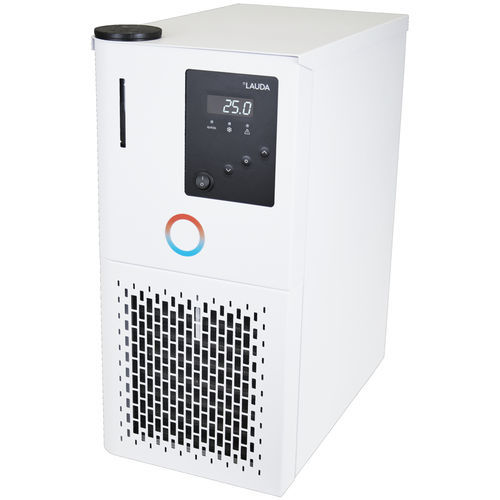

Compact laboratory chiller Microcool MC 350

benchtopcirculatingair-cooled

Product description
The compact bench-top circulation chiller Microcool MC 350 is designed for laboratory applications and fits easily on a lab bench. Larger floor-standing models with 600 W and 1200 W cooling capacity are available for applications requiring higher capacity.

Features

• Circulation chiller for temperature control of non-flammable liquids
• Fully electronic continuous controller
• RS-232 interface
• Cooling capacity adjustment via solenoid valve including compressor on-off control
• Operates with water and water/glycol mixtures
• 1-line LED display for actual or set temperature
• Temperature protection for pump windings, illuminated level indicator and low-level alarm
• Auto-start timer and auto-shut-down function
• Uses natural refrigerants
• User-friendly menu with simple 3-key operation
• Magnetically coupled block pump
• Top filler opening, rear outlet connection
• Condenser cooled by air

Working range

• Min. working temperature: -10 °C
• Max. working temperature: 40 °C
• Temperature stability: 0.5 ± K

Cooling capacity (table)
Temperature | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
40 °C | Water/glycol | 0.35 kW | 0.35 kW
20 °C | Ethanol | 0.35 kW | 0.35 kW
10 °C | Ethanol | 0.27 kW | 0.27 kW
0 °C | Ethanol | 0.20 kW | 0.20 kW
-10 °C | Ethanol | 0.12 kW | 0.12 kW


Technical specifications

• Model: Microcool MC 350
• Working temperature range: -10 ... 40 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.5 ± K
• Max. discharge pressure: 0.4 bar
• Max. pump flow: 16 L/min
• Inlet / outlet connection thread (outside): Ø 10 mm
• Filling volume: 4 - 7 L
• Dimensions (W × D × H): 240 x 400 x 500 mm
• Weight (net): 30.4 kg
• Noise level: 57 dB(A)
• Max. power consumption: 0.34 kW
• Current consumption: 1.7 A
• Power supply: 220 V; 60 Hz / 230 V; 50 Hz
• Power plug: Power cord with angled plug (CEE7/7)

Ordering information
Order number: L004112
