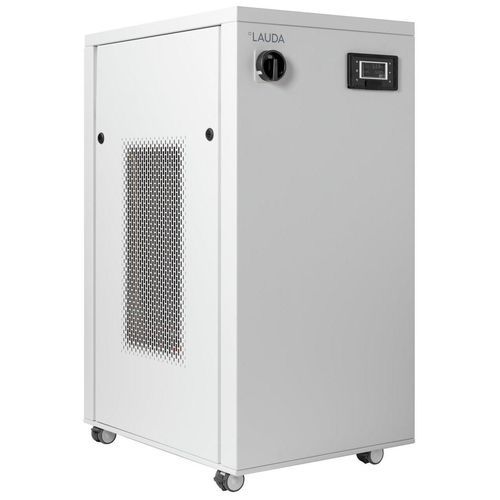

Floor-standing laboratory chiller Ultracool UC 4 W

circulatingwater-cooled

Overview
LAUDA Ultracool circulation chillers deliver precise temperature control in an operating range from -10 to 35 °C with temperature stability of ±0.5 K. Standard fan control permits operation at ambient temperatures down to -15 °C and reduces noise. The unit features a reduced footprint compared with previous models and includes an Ethernet interface as standard. Numerous factory options (speed-controlled pumps, flow meters, IP54 protection for outdoor installation) enable customer-specific configurations.

Features

• Industrial circulation chiller, water-cooled (W)
• Electronic 2-point temperature control
• Integrated water filter
• Compliant with EcoDesign directive 2009/125/EC
• Graphic LCD with plain-text menu navigation
• Industrial block pump with high pressure and high flow rate
• Integrated Ethernet interface and web-server operation
• Inlet and outlet water connections in stainless steel
• Compatible with non-flammable fluids (water, water/glycol)

Working range

• Min. working temperature: -10 °C
• Max. working temperature: 35 °C
• Temperature stability: ±0.5 K

Technical data (according to DIN 12876)
Working temperature range: -10 ... 35 °C
Ambient temperature range: -15 ... 50 °C
Temperature stability: 0.5 ± K
Max. filling volume: 12 L
Max. discharge pressure: 3.4 bar
Max. pump flow rate: 42 L/min
Nominal pump flow rate: 13.8 L/min
In-/Outlet connection thread (inside): Rp 1/2
Water cooling connection thread (inside): Rp 1/2
Dimensions (WxDxH): 510 x 680 x 1042 mm
Weight: 92 kg
Noise level: 57.9 dB(A)
Power supply: 230 V; 50 Hz
Power plug: Power cord without plug (HAR)

Cooling capacity (50 Hz)
25 °C: 6.1 kW
20 °C: 6.1 kW
15 °C: 5.5 kW
10 °C: 4.8 kW
5 °C: 3.9 kW
0 °C: 3.3 kW
-5 °C: 2.8 kW
-10 °C: 2.4 kW

Accessories (examples)

• External bypass
• Hose set (Ultracool)

Technical specifications

• Brand: LAUDA
• Commercial designation: Ultracool UC 4 W
• Part number: L003856
• Working temperature range: -10 ... 35 °C
• Ambient temperature range: -15 ... 50 °C
• Temperature stability: 0.5 ± K
• Max. filling volume: 12 L
• Cooling capacity (25 °C / 50 Hz): 6.1 kW
• Nominal pump flow rate: 13.8 L/min (max 42 L/min)
• Connections: Rp 1/2 (in/out and water cooling)
• Dimensions (WxDxH): 510 x 680 x 1042 mm
• Weight: 92 kg
• Noise level: 57.9 dB(A)
• Power supply: 230 V; 50 Hz; Power cord without plug (HAR)
