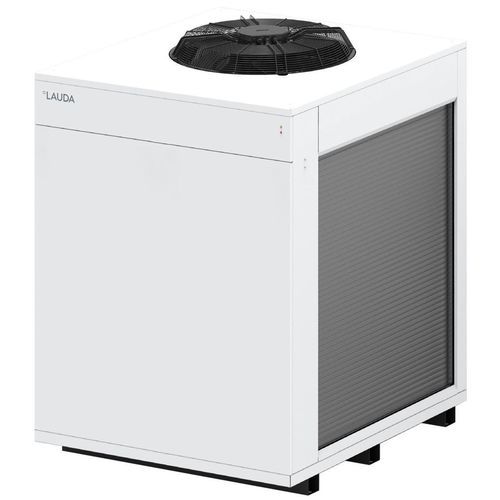

Floor-standing laboratory chiller Ultracool UC 80

circulating

Product overview
LAUDA Ultracool circulation chillers provide precise temperature control in an extended operating range from -10 to 35 °C with temperature stability of ±0.5 K (reference). In accordance with DIN 12876 the units achieve ±1 K stability. Protection class IP 54 permits outdoor installation; standard fan control enables operation down to -20 °C while reducing noise. The design reduces footprint compared with previous models. Standard Ethernet interface and web-server operation support remote monitoring and control. A range of options (speed-controlled pumps, flow meters) allows customer-specific adaptation. Units use natural refrigerants and operate with non-flammable fluids such as water or water/glycol.

Features

• Highly efficient industrial chiller
• Industrial block pump with high pressure and high flow rate
• Operates with non-flammable liquids (water, water/glycol)
• Operation possible via web server
• Integrated water filter
• Meets energy efficiency requirements of the EcoDesign directive 2009/125/EC
• Temperature control via PID controller
• Integrated Ethernet interface
• Utilizes natural refrigerants

Working range
Min. working temperature: -10 °C
Max. working temperature: 35 °C
Temperature stability: ±1 K (±0.5 K indicated in product intro for reference)
Ambient temperature range: -20 ... 50 °C

Cooling capacity (examples)
25 °C — 106.5 kW (50/60 Hz)
20 °C — 103.6 kW (50/60 Hz)
15 °C — 92.5 kW (50/60 Hz)
10 °C — 79.8 kW (50/60 Hz)
5 °C — 68.2 kW (50/60 Hz)
0 °C — 57.9 kW (50/60 Hz)
-5 °C — 48.7 kW (50/60 Hz)
-10 °C — 40.6 kW (50/60 Hz)

Technical data (according to DIN 12876)

• Working temperature range: -10 ... 35 °C
• Ambient temperature range: -20 ... 50 °C
• Temperature stability: ±1 K
• Max. filling volume: 125 L
• Max. discharge pressure: 5.3 bar (50 Hz), 7.5 bar (60 Hz)
• Max. pump flow: 367 L/min
• Nominal pump flow rate: 250 L/min
• In/outlet connection thread (inside): Rp 2 1/2
• Dimensions (WxDxH): 1256 x 1706 x 1905 mm
• Weight: 700 kg
• Noise level: 67.5 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz

Accessories (examples)

• Extension cable (available accessory items listed on product page)
• LAUDA accessory finder for additional accessories

Technical specifications

• Device line / model: Ultracool UC 80
• Working temperature range: -10 … 35 °C
• Temperature stability: ±1 K (±0.5 K indicated in product intro for reference)
• Ambient operation: down to -20 °C (with fan control), up to 50 °C
• Cooling capacities (examples): 106.5 kW (25 °C) down to 40.6 kW (-10 °C)
• Max. filling volume: 125 L
• Pump: nominal 250 L/min; max flow 367 L/min; max discharge pressure 5.3 bar (50 Hz) / 7.5 bar (60 Hz)
• Connections: Rp 2 1/2 (inside)
• Dimensions (WxDxH): 1256 x 1706 x 1905 mm
• Weight: 700 kg
• Noise level: 67.5 dB(A)
• Interfaces / controls: PID controller, integrated Ethernet, web server operation possible
• Refrigerant / fluids: utilizes natural refrigerants; operates with water or water/glycol (non-flammable)
• Protection class: IP 54 (outdoor installation possible)
