Benchtop laboratory chiller Microcool MC series

compactair-cooledcirculating

Product overview

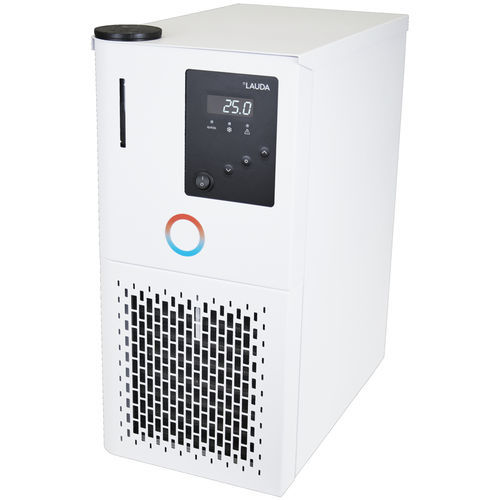

The Microcool MC 350 is a compact circulation chiller designed for continuous bench-top use in laboratories and R&D environments. It delivers 0.35 kW cooling capacity and features a magnetically coupled block pump and large LED display for straightforward operation.

Key features

• Circulation chiller for laboratory process cooling
• Fully electronic continuous controller with 3-key operation
• RS-232 interface and alarm contact (standard)
• Cooling capacity modulation via solenoid valve with compressor on/off control
• Compatible with non-flammable fluids (water, water/glycol)
• 1-line LED display showing set or actual temperature
• Temperature protection for pump windings, illuminated sight glass and low-level alarm
• Auto-start timer and auto-shut-down functions
• Magnetically coupled block pump (no shaft seal)
• Top filler opening; outlet/ drain connection at rear
• Air-cooled condenser; uses natural refrigerants

Working range

• Min. working temperature: -10 °C
• Max. working temperature: 40 °C
• Temperature stability: 0.5 ± K

Cooling capacity (data)
Temperature | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
40 °C | Waterglycol | 0.35 kW | 0.35 kW
20 °C | Ethanol | 0.35 kW | 0.35 kW
10 °C | Ethanol | 0.27 kW | 0.27 kW
0 °C | Ethanol | 0.20 kW | 0.20 kW
-10 °C | Ethanol | 0.12 kW | 0.12 kW

Technical specifications

• Working temperature range: -10 ... 40 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.5 ± K
• Max. discharge pressure: 0.4 bar
• Max. pump flow: 16 L/min
• Inlet / outlet connection (outside): Ø 10 mm
• Min. filling volume: 4 L
• Max. filling volume: 7 L
• Dimensions (WxDxH): 240 x 400 x 500 mm
• Weight / Net weight: ~30 / 30.4 kg
• Noise level: 57 dB(A)
• Max. power consumption: 0.34 kW
• Current consumption: 1.7 A
• Power supply: 220 V; 60 Hz / 230 V; 50 Hz
• Power plug: Power cord with angled plug (CEE7/7)
• Part no.: L004112

Applications

• Laboratory process cooling and temperature control
• R&D and sample conditioning
• Bench-top setups where compact footprint and continuous operation are required

Downloads
User manual, product brochure and technical documentation available as PDF.
