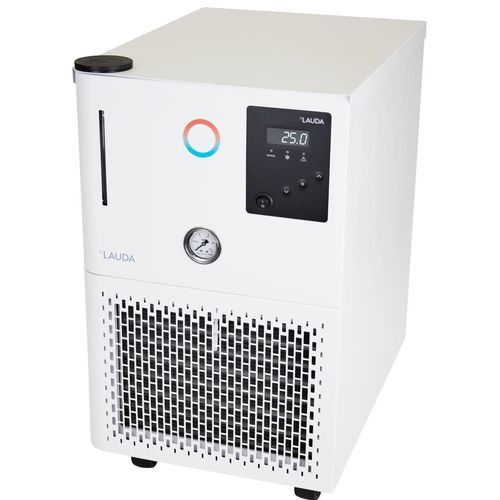

Benchtop laboratory chiller MICROCOOL MC 600

undercounterair-cooledcirculating

Product description
The compact circulation chiller Microcool MC 600 provides up to 0.6 kW of cooling capacity for laboratory temperature control. Designed for bench-top use or floor placement under a workbench to save space; compatible with non-flammable fluids (water, water/glycol).

Features

• Circulation chiller with fully electronic continuous controller
• RS 232 interface
• Adjustable bypass for pressure limiting
• Air-cooled condenser
• 1-line LED display (actual or set temperature)
• Temperature protection for pump windings, illuminated level indication and low-level alarm
• Auto-start timer and auto-shut-down function
• Cooling capacity adjustment via solenoid valve including compressor on/off control
• User-friendly 3-key menu guidance
• Magnetically coupled block pump
• Top filler opening, rear outlet connection
• Utilizes natural refrigerants

Working range

• Min. working temperature: -10 °C
• Max. working temperature: 40 °C
• Temperature stability: 0.5 ± K

Technical data (according to DIN 12876)
Working temperature range: -10 ... 40 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.5 ± K
Max. discharge pressure: 1.3 bar
Max. pump flow (pressure): 35 L/min
In/Outlet connection thread (outside): G 3/4"
Filling volume: min. 4 L / max. 8 L
Dimensions (WxDxH): 350 x 480 x 595 mm
Net weight: 50 kg
Noise level: 54 dB(A)
Max. power consumption: 0.75 kW
Current consumption: 7.2 A
Power supply (this variant): 115 V; 60 Hz / Power plug: Power cord with plug (NEMA 5-15P)

Cooling capacity (examples)
40 °C | Water/glycol | 0.6 kW | 0.6 kW
20 °C | Ethanol | 0.6 kW | 0.6 kW
10 °C | Ethanol | 0.5 kW | 0.5 kW
0 °C | Ethanol | 0.37 kW | 0.37 kW
-10 °C | Ethanol | 0.2 kW | 0.2 kW

Accessories

• EPDM tube (fiber reinforced)
• EPDM tube

Technical specifications

• Brand: Lauda
• Model: Microcool MC 600
• Part no.: L004458
• Working temperature range: -10 ... 40 °C
• Temperature stability: 0.5 ± K
• Cooling capacity (example values): up to 0.6 kW (depending on temperature and medium)
• Pump flow: up to 35 L/min
• Filling volume: min. 4 L / max. 8 L
• Connections: G 3/4" (outside thread)
• Dimensions (WxDxH): 350 x 480 x 595 mm
• Net weight: 50 kg
• Power supply / plug (this variant): 115 V; 60 Hz / Power cord with plug (NEMA 5-15P)
• Max. power consumption: 0.75 kW
• Noise level: 54 dB(A)
