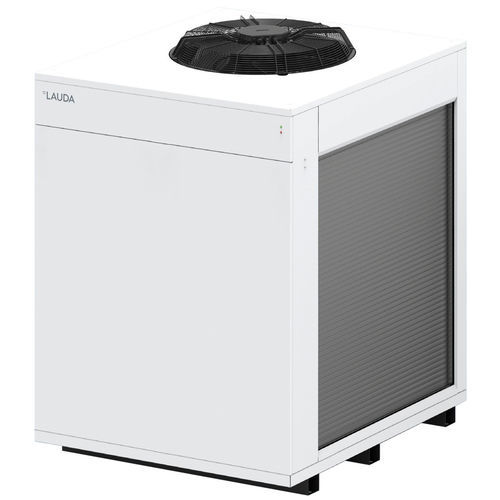

Floor-standing laboratory chiller Ultracool UC 100

compactcirculating

Product overview
LAUDA Ultracool circulation chillers deliver precise temperature control across an extended operating range from -10 to 35 °C with typical temperature stability of ±0.5 K. Protection class IP54 allows outdoor installation; integrated fan control permits operation at ambient temperatures down to -20 °C while reducing noise. The compact footprint has been reduced compared with previous models. Standard Ethernet interface and numerous options (speed-controlled pumps, flow meters, etc.) allow adaptation to customer-specific system requirements.

Features

• High-efficiency industrial circulation chiller
• Electronic 2-point temperature control
• Integrated water filter
• Stainless-steel inlet and outlet connections
• LCD remote control with 5 m cable
• Protection class IP54 for outdoor installation
• Integrated Ethernet interface and web-server operation
• Compatible with non-flammable heat transfer fluids (water, water/glycol)
• Industrial block pump: high pressure and high flow rate
• Integrated phase detector for phase-sequence monitoring
• Compliant with EcoDesign directive 2009/125/EC energy efficiency requirements

Working range

• Minimum working temperature: -10 °C
• Maximum working temperature: 35 °C
• Temperature stability: approx. ±0.5 K (typical) / 1 ± K (DIN 12876)

Technical data (according to DIN 12876)
Working temperature range: -10 ... 35 °C
Ambient temperature range: -20 ... 50 °C
Temperature stability: 1 ± K
Max. filling volume: 125 L
Max. discharge pressure: 5.3 bar (50 Hz) / 7.5 bar (60 Hz)
Max. pump flow: 367 L/min (50 Hz); 450 L/min (60 Hz)
Nominal pump flow rate: 300 L/min
In / outlet connection thread (inside): Rp 2 1/2
Dimensions (WxDxH): 1256 x 1706 x 1905 mm
Weight: 679 kg
Noise level: 69.3 dB(A)
Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz

Cooling capacity (selected values)
Temperature — Cooling capacity 50 Hz — Cooling capacity 60 Hz
25 °C — 124.7 kW — 124.7 kW
20 °C — 121.4 kW — 121.4 kW
15 °C — 110.2 kW — 110.2 kW
10 °C — 95.3 kW — 95.3 kW
5 °C — 81.7 kW — 81.7 kW
0 °C — 68.3 kW — 68.3 kW
-5 °C — 57.5 kW — 57.5 kW
-10 °C — 47.8 kW — 47.8 kW

Accessories (examples)

• External bypass
• Reverse-flow protection / shut-off valve

Technical specifications

• Model: Ultracool UC 100
• Protection class: IP54 (suitable for outdoor installation)
• Temperature range: -10 °C to 35 °C
• Ambient operation down to -20 °C with fan control
• Temperature stability: approx. ±0.5 K (typical) / 1 ± K (DIN 12876)
• Max. filling volume: 125 L
• Max. discharge pressure: 5.3 bar (50 Hz) / 7.5 bar (60 Hz)
• Nominal pump flow rate: 300 L/min; max pump flow up to 367 L/min (50 Hz) / 450 L/min (60 Hz)
• Connections: Rp 2 1/2 (internal thread)
• Dimensions (WxDxH): 1256 x 1706 x 1905 mm
• Weight: 679 kg
• Noise level: 69.3 dB(A)
• Interfaces: Ethernet interface standard; web-server operation possible
• Power supply options: 400 V; 3/PE; 50 Hz and 460 V; 3/PE; 60 Hz
