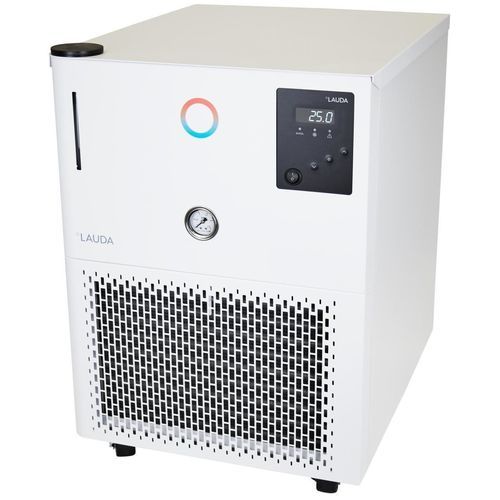

Undercounter laboratory chiller MICROCOOL MC 1200

benchtopcompactair-cooled

Product overview
The Microcool MC 1200 is a compact circulation chiller for laboratory and process tempering, offering up to 1.2 kW cooling capacity. The unit can be used on a bench or positioned on the floor under a bench to save space and is designed to operate with natural refrigerants.

Key features

• Circulation chiller, model Microcool MC 1200
• Fully electronic continuous controller with 1-line LED display
• RS-232 interface
• Adjustable bypass for pressure limiting
• Air-cooled condenser
• Magnetically coupled block pump — max. flow 35 L/min; max. discharge pressure 1.3 bar
• Operates with non-flammable liquids (water, water/glycol)
• Cooling capacity adjustment via solenoid valve control with compressor on/off
• Auto-start timer and auto-shut-down functions
• Top filler opening; inlet/outlet connections G 3/4" (outside thread)
• Designed for use with natural refrigerants

Working range

• Min. working temperature: -10 °C
• Max. working temperature: 40 °C
• Temperature stability: ±0.5 K

Cooling capacity examples
Temperature | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
40 °C | Water/glycol | 1.2 kW | 1.2 kW
20 °C | Ethanol | 1.2 kW | 1.2 kW
10 °C | Ethanol | 1.05 kW | 1.05 kW
0 °C | Ethanol | 0.75 kW | 0.75 kW
-10 °C | Ethanol | 0.4 kW | 0.4 kW

Technical data

• Working temperature range (DIN 12876): -10 ... 40 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: ±0.5 K
• Max. discharge pressure: 1.3 bar
• Max. pump flow: 35 L/min
• Connections: G 3/4" (outside thread)
• Filling volume: min. 7 L — max. 14 L
• Dimensions (W×D×H): 450 × 550 × 650 mm; Weight: 63 kg
• Noise level: 59 dB(A)
• Max. power consumption: 0.82 kW; Current: 4.2 A; Power supply example: 230 V; 50 Hz; power cord with angled plug (CEE7/7)
• Order no.: L004461
