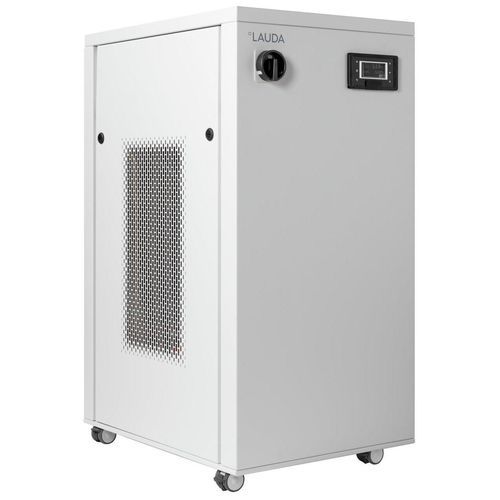

Laboratory chiller on casters Ultracool UC 2

circulatingair-cooled

Product overview
LAUDA Ultracool circulation chillers provide precise temperature control over an extended operating range from -10 to 35 °C with temperature stability of ±0.5 K. Standard fan control allows operation at ambient temperatures down to -15 °C and reduces noise emission. The unit footprint has been reduced compared with previous models. An integrated Ethernet interface is supplied as standard and the chiller can be configured with options such as speed-controlled pumps, flow meters and protection class IP 54 for outdoor installation.

Features

• Industrial circulation chiller for process temperature control
• Electronic 2-point temperature control
• Integrated water filter
• Complies with EcoDesign directive 2009/125/EC energy efficiency requirements
• Graphic LCD with clear text menu navigation
• Industrial block pump with high pressure and high flow rate
• Integrated Ethernet interface; operation via web server possible
• Condenser cooling: air
• Stainless steel inlet and outlet water connections
• Operates with non-flammable liquids (water, water/glycol)
• Reinforced pump

Working range

• Min. working temperature: -10 °C
• Max. working temperature: 35 °C
• Temperature stability: ±0.5 K

Cooling capacity (50 Hz)
25 °C | 3.1 kW
20 °C | 3.1 kW
15 °C | 2.8 kW
10 °C | 2.4 kW
5 °C | 2.0 kW
0 °C | 1.7 kW
-5 °C | 1.4 kW
-10 °C | 1.2 kW

Accessories (examples)

• External bypass
• Hose set (Ultracool)

Specifications

• Working temperature range: -10 ... 35 °C
• Ambient temperature range: -15 ... 50 °C
• Temperature stability: ±0.5 K
• Max. filling volume: 12 L
• Max. discharge pressure: 5.5 bar
• Max. pump flow rate: 68 L/min
• Nominal pump flow rate: 5.6 L/min
• Inlet / outlet connection thread (inside): Rp 1/2
• Dimensions (WxDxH): 510 x 680 x 1042 mm
• Weight: 93 kg
• Noise level: 53.5 dB(A)
• Power supply: 230 V; 50 Hz
• Power plug: Power cord without plug (HAR)
