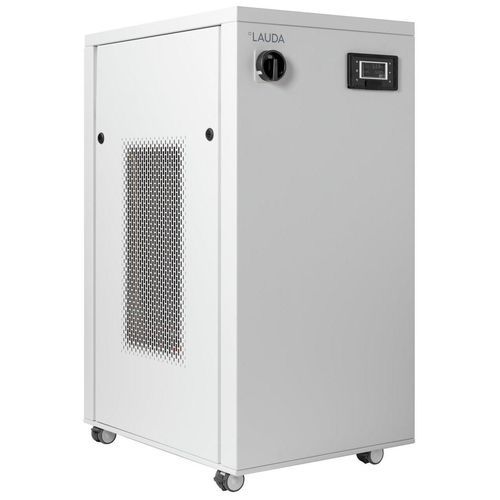

Floor-standing laboratory chiller Ultracool UC 2 W

circulatingwater-cooled

Product description
LAUDA Ultracool UC 2 W circulation chiller provides precise temperature control across an extended operating range from -10 to 35 °C with a temperature stability of ±0.5 K. The unit includes fan control for operation at low ambient temperatures, a reduced footprint compared with previous models and a standard Ethernet interface for monitoring and control. The W version features condenser cooling by water. Multiple factory options allow adaptation to customer-specific process requirements.

Key features

• Industrial circulation chiller for process temperature control
• Electronic 2-point temperature control with ±0.5 K stability
• Integrated Ethernet interface (web-server operation possible)
• Compliant with EcoDesign directive 2009/125/EC energy requirements
• Graphic LCD with clear text menu navigation
• Industrial block pump: high pressure and high flow
• Stainless-steel inlet and outlet water connections
• Condenser cooling water (water-cooled version: W)
• Integrated water filter
• Suitable for non-flammable fluids (water, water/glycol)

Working range
Min. working temperature: -10 °C
Max. working temperature: 35 °C
Temperature stability: ±0.5 K

Cooling capacity (50 Hz)
25 °C: 3.1 kW
20 °C: 3.1 kW
15 °C: 2.8 kW
10 °C: 2.4 kW
5 °C: 2.0 kW
0 °C: 1.7 kW
-5 °C: 1.4 kW
-10 °C: 1.2 kW

Options / Adaptations

• Speed-controlled pumps
• Flow meters
• Protection class IP 54 for outdoor installation
• Water-cooled version (W)

Technical specifications

• Working temperature range: -10 … 35 °C
• Ambient temperature range: -15 … 50 °C
• Temperature stability: ±0.5 K
• Max. filling volume: 12 L
• Max. discharge pressure: 3.4 bar
• Max. pump flow rate: 42 L/min
• Nominal pump flow rate: 5.6 L/min
• Inlet / Outlet connection thread (inside): Rp 1/2
• Water cooling connection thread (inside): Rp 1/2
• Dimensions (W×D×H): 510 x 680 x 1042 mm
• Weight: 89 kg
• Noise level: 53.5 dB(A)
• Power supply: 230 V, 50 Hz
• Power plug: Power cord without plug (HAR)
