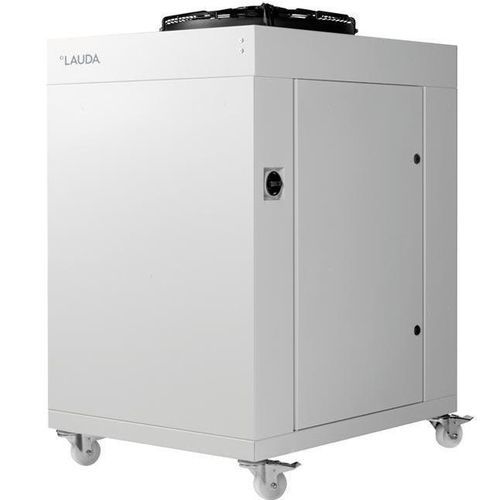

Floor-standing laboratory chiller Ultracool UC 24 W

circulatingwater-cooled

Product description
LAUDA Ultracool circulation chillers deliver precise temperature control across an extended operating range from -10 to 35 °C with temperature stability of ±0.5 K. The IP54 protection class allows outdoor installation. Standard fan control permits operation at ambient temperatures down to -20 °C while reducing noise. Compared to previous models, LAUDA reduced the unit footprint. Standard Ethernet interface and numerous options (e.g. speed-controlled pumps, flow meters) enable adaptation to specific customer requirements.

Features

• Highly efficient industrial chiller
• Electronic 2-point temperature control
• Integrated water filter
• Operates with non-flammable liquids (water, water/glycol)
• Reinforced stainless steel pump
• LCD remote control with 5 m cable
• Protection level IP 54 (suitable for outdoor installation)
• Integrated Ethernet interface
• Compliant with EcoDesign directive 2009/125/EC energy efficiency requirements
• Water-cooled version (W)
• Web-server operation possible
• Industrial block pump with high pressure and high flow rate
• Inlet and outlet water connections in stainless steel
• Condenser cooled with water

Working range
Min. working temperature: -10 °C
Max. working temperature: 35 °C
Temperature stability: ±0.5 K

Cooling capacity (50 Hz)
25 °C — 34 kW
20 °C — 30.9 kW
15 °C — 28.1 kW
10 °C — 24.3 kW
5 °C — 20.8 kW
0 °C — 17.3 kW
-5 °C — 14.5 kW
-10 °C — 12 kW

Technical specifications

• Working temperature range: -10 ... 35 °C
• Ambient temperature range: -20 ... 50 °C
• Temperature stability: ±0.5 K
• Max. filling volume: 35 L
• Max. discharge pressure: 5.8 bar
• Max. pump flow pressure: 166 L/min
• Nominal pump flow rate: 84.1 L/min
• Inlet / outlet connection thread (inside): Rp 1
• Water cooling connection thread (inside): Rp 1
• Dimensions (W x D x H): 720 x 910 x 1250 mm
• Weight: 180 kg
• Power supply: 400 V; 3/PE; 50 Hz
• Power plug: ---
