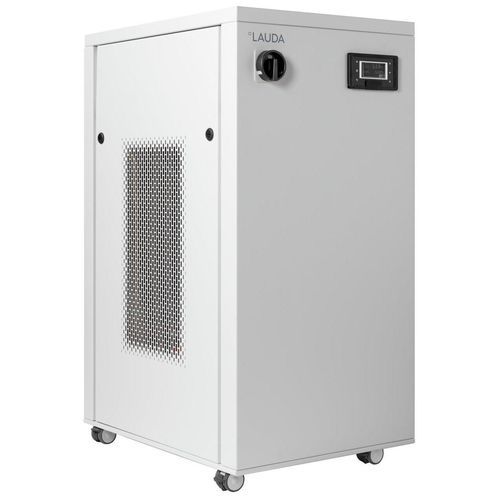

Floor-standing laboratory chiller Ultracool UC 4

circulating

Product description
The LAUDA Ultracool UC 4 circulation chiller provides precise temperature control for industrial applications in an extended operating range from -10 to 35 °C with a temperature stability of ±0.5 K. Designed for outdoor-capable installation (IP54), the unit features an integrated Ethernet interface and options for customer-specific configurations such as speed-controlled pumps and flow meters.

Features

• Industrial circulation chiller suitable for water and water/glycol mixtures (non-flammable)
• Industrial block pump with high pressure and high flow rate
• Integrated Ethernet interface and web-server operation
• Standard fan control for operation at low ambient temperatures and reduced noise
• Integrated water filter
• Compliant with EcoDesign directive 2009/125/EC
• Temperature control via PID controller
• Use of natural refrigerants

Working range

• Min. working temperature: -10 °C
• Max. working temperature: 35 °C
• Temperature stability: ±0.5 K

Technical data (according to DIN 12876)
Working temperature range: -10 ... 35 °C
Ambient temperature range: -15 ... 50 °C
Temperature stability: ±0.5 K
Max. filling volume: 12 L
Max. discharge pressure: 3.4 bar
Max. pump flow pressure: 42 L/min
Nominal pump flow rate: 13.8 L/min
In / Outlet connection thread (inside): Rp 1/2
Dimensions (WxDxH): 510 x 680 x 1042 mm
Weight: 103 kg
Noise level: 57.9 dB(A)
Power supply: 230 V; 50 Hz
Power plug: Power cord without plug (HAR)

Cooling capacity (50 Hz)
25 °C - 6.1 kW
20 °C - 6.1 kW
15 °C - 5.5 kW
10 °C - 4.7 kW
5 °C - 3.9 kW
0 °C - 3.3 kW
-5 °C - 2.8 kW
-10 °C - 2.4 kW

Technical specifications

• Model line: Ultracool
• Series / Model: UC 4
• Protection class: IP54 (outdoor installation capable)
• Ethernet interface: integrated as standard
• Options: speed-controlled pumps, flow meters and other customer-specific options
• Pump: industrial block pump, high pressure & high flow
• Fluid compatibility: water and water/glycol (non-flammable)
