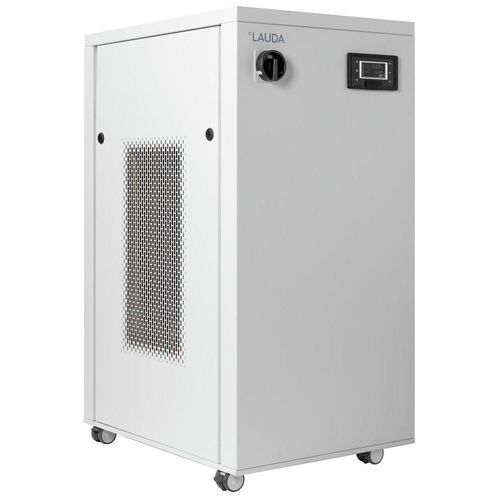

Compact laboratory chiller Ultracool UC 2

circulatingrecirculating

Product description
LAUDA Ultracool UC 2 recirculating chiller offers precise temperature control over a working range of -10 to 35 °C with a stability of ±0.5 K. The unit has protection class IP54 for outdoor installation, a standard fan control allowing operation at ambient temperatures down to -20 °C, and a compact footprint compared with previous models. The chiller includes a standard Ethernet interface and can be configured with options such as speed-controlled pumps and flow meters to meet customer-specific requirements.

Features

• Industrial chiller designed for circulation cooling
• Industrial block pump providing high pressure and high flow
• Compatible with non-flammable heat transfer fluids (water, water/glycol)
• Remote operation and monitoring via built-in web server
• Integrated water filter
• Compliant with EcoDesign directive 2009/125/EC
• PID temperature controller for precise regulation
• Integrated Ethernet interface
• Uses natural refrigerants

Working range
Min. working temperature: -10 °C
Max. working temperature: 35 °C
Temperature stability: ±0.5 K
Ambient temperature range: -15 ... 50 °C

Cooling capacity (50 Hz)
25 °C | 3.1 kW
20 °C | 3.1 kW
15 °C | 2.8 kW
10 °C | 2.6 kW
5 °C | 2.0 kW
0 °C | 1.7 kW
-5 °C | 1.4 kW
-10 °C | 1.2 kW

Technical specifications

• Working temperature range: -10 ... 35 °C
• Ambient temperature range: -15 ... 50 °C
• Temperature stability: ±0.5 K
• Max. filling volume: 12 L
• Max. discharge pressure: 3.4 bar
• Max. pump flow: 42 L/min
• Nominal pump flow rate: 5.6 L/min
• Inlet/outlet connection thread (inside): Rp 1/2
• Dimensions (W×D×H): 510 × 680 × 1042 mm
• Weight: 95 kg
• Noise level: 53.5 dB(A)
• Power supply: 230 V, 50 Hz
• Power connection: Power cord without plug (HAR)
