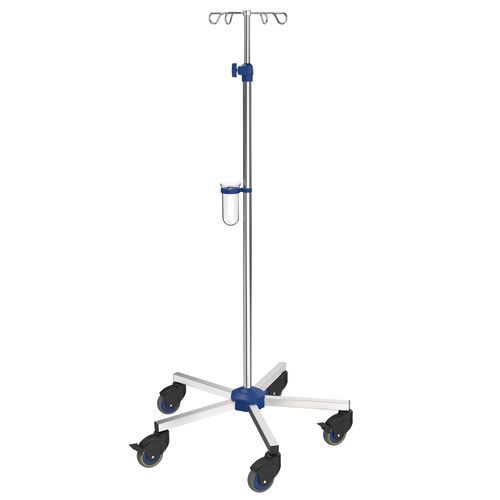

IV pole on casters I-N12122

4-hookstainless steelfor beds

Overview
Provita IV-Rods and Stands are employed in numerous doctor practices as well as intensive and normal care. To satisfy demands in hospitals and daily normal care, Provita offers for every application an individual drip stand solution with an extensive accessory program.

Advantages

• Effective infusion care by securely hanging infusion bottles and bags
• Mobile and flexible application possibilities

Technology

• All plastic parts are lightfast
• Stainless steel tubes according to DIN EN 10217-7
• Material ultrasonic and eddy current tested (according to EN 10246-9/3)
• The integrated pull-out limiter prevents the adjustable tubes from separating
• Safety bottle cross according to DIN ISO 15375
• Great running characteristic through high value 80 mm Mono castors
• A sealing cap prevents the IV-pole from hygienical sensitive liquids

Economy

• Compact packaging allows for low-cost shipping

Safety

• The base legs are sealed with plastic plugs (no risk of injury)
• Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
• No risk of injury thanks to the rounded shape of the bottle hooks
• The geometry of the hooks prevents the infusion bottle from falling out

Application

• Optimal hygienic characteristics (wipe disinfection)
• Very easy and fast assembly through a plug in and out system with only 1 screw connection
• Comfortable height adjustment through a screw-height adjustment with an integrated, surface-gently mold clamping element

Technical characteristics / Specifications

• Field of application: Normal Care
• Material: Stainless steel
• Colour of plastic parts: Blue
• Bottle holder: Stainless steel bottle cross for screwing in
• Number of hooks: 4
• Arrangement of the hooks: 90° to each other
• Type of height adjustment: Screw height adjustment
• Maximum length/height: 2.145 mm ± 10mm
• Minimum length/height: 1.305 mm ± 10mm
• Inner tube diameter: Ø 18 mm
• Outer tube diameter: Ø 25 mm
• Length of outer tube: 1.000 mm
• Base leg profile: 25 x 25 mm
• Base weight: Unweighted
• Base diameter: Ø 635 mm
• Castors: Mono castors
• Castor diameter: Ø 80 mm
• Number of castors: 5; 2 with brakes and elect. conductivity
• Drip vessel sterilizable: Yes
• Total load capacity (kg): 9.5
• Load capacity per system (kg): 8
• Load capacity per hook (kg): 2
• Packaging dimensions (Packaging unit: Pair) - Box1: Width 0,19 m; Height 0,10 m; Length 1,19 m; Weight 7,60 kg
• Packaging dimensions (Packaging unit: Unit) - Box1: Width 0,19 m; Height 0,10 m; Length 1,19 m; Weight 4,10 kg
