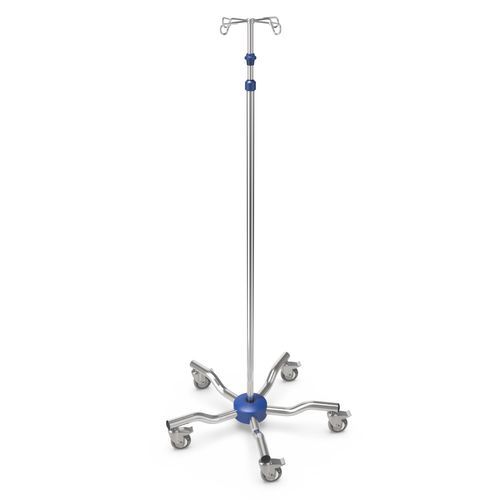

IV pole on casters I-LOW011

4-hookstainless steelheight-adjustable

Product highlights
Provita IV-rods and stands are used across medical practices as well as in intensive and general care. Designed to meet hospital and routine-care requirements, the Premium Care IV stand is delivered with an extensive accessory range for varied clinical applications.

Advantages

• Secure hanging of infusion bottles and bags for reliable infusion therapy
• Mobile design with 5 castors for flexible positioning and transport

Technology

• UV-resistant plastic components
• Stainless steel tubes manufactured to DIN EN 10217-7
• Integrated pull-out limiter prevents separation of adjustable tubes
• Safety bottle cross compliant with DIN ISO 15375

Safety

• Base legs sealed with plastic plugs to eliminate injury risk
• Built-in safety distance reduces pinching risk when extending/retracting the pole
• Rounded bottle hooks prevent injury and reduce snagging
• Hook geometry secures infusion bottles against accidental fall-out

Application

• Outer tube provides space to mount additional devices at an ergonomic operating height

Product details / Technical data
Field of application: Intensive care
Material: Stainless steel / Plastic
Colour of plastic parts: Blue / Black
Number of hooks: 4
Arrangement of the hooks: 90° to each other
Type of height adjustment: One-hand height adjustment
Maximum length/height: 2,265 mm
Minimum length/height: 1,490 mm
Inner tube diameter: Ø 18 mm
Outer tube diameter: Ø 25 mm
Length of outer tube: 1,200 mm
Base leg profile: Ø 33.7 mm
Base weight: Weighted
Base diameter: Ø 680 mm
Castors: Apparatus castors
Castor diameter: Ø 75 mm
Number of castors: 5 with brakes and electrical conductivity
Total load capacity (kg): 18
Load capacity per system (kg): 8
Load capacity per hook (kg): 2

Packaging dimensions (Box1)
Packaging unit: Unit
Width Box1: 0.21 m
Height Box1: 0.13 m
Length Box1: 1.46 m
Weight Box1: 11.50 kg
