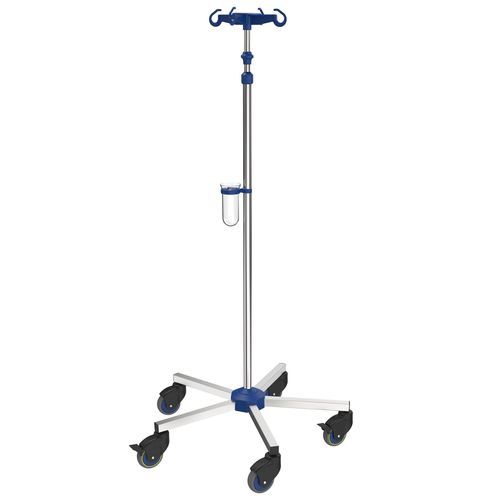

IV pole on casters I-N12111

4-hookstainless steelfor beds

Overview
Provita IV rods and stands designed for normal care provide a height-adjustable, stainless-steel solution for infusion management in hospitals and clinics. The Provita Normal Care IV stand is suitable for ward use and outpatient settings where reliable, easy-to-clean equipment is required.

Advantages

• Effective infusion management by securely hanging infusion bottles and bags
• Mobile and flexible use with five castors for smooth movement

Economy

• Compact packaging for reduced shipping costs

Safety

• Base legs sealed with plastic plugs to eliminate sharp edges
• Built-in safety distance reduces risk of pinching when extending or retracting the pole
• Rounded bottle hooks minimise risk of injury
• Hook geometry prevents infusion bottles from slipping out

Application

• Good hygienic properties (wipe disinfection)
• Comfortable one-hand safety height adjustment
• Quick assembly via plug-in system with a single screw connection

Characteristics / Technical specifications

• Field of application: Normal Care
• Material: Stainless steel
• Colour of plastic parts: Blue
• Bottle holder: Plastic bottle cross
• Number of hooks: 4
• Arrangement of the hooks: 90° to each other
• Type of height adjustment: One-hand height adjustment
• Maximum length/height: 2,180 mm ± 10 mm
• Minimum length/height: 1,310 mm ± 10 mm
• Inner tube diameter: Ø 18 mm
• Outer tube diameter: Ø 25 mm
• Length of outer tube: 1,000 mm
• Base leg profile: 25 x 25 mm
• Base weight: Unweighted
• Base diameter: Ø 635 mm
• Castors: Mono castors
• Castor diameter: Ø 80 mm
• Number of castors: 5; 2 with brakes and electrical conductivity
• Drip vessel sterilizable: Yes
• Total load capacity (kg): 9.5
• Load capacity per system (kg): 8
• Load capacity per hook (kg): 2
• Packaging dimensions (packaging unit: Pair) — Width Box1: 0.19 m; Height Box1: 0.10 m; Length Box1: 1.19 m; Weight Box1: 7.60 kg
• Packaging dimensions (packaging unit: Unit) — Width Box1: 0.19 m; Height Box1: 0.10 m; Length Box1: 1.19 m; Weight Box1: 4.10 kg
