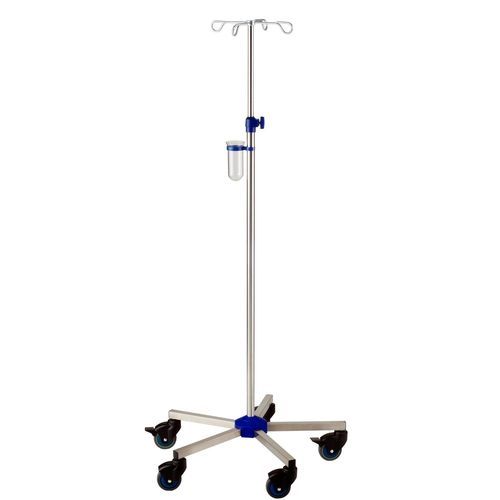

IV pole on casters I-N12222

4-hookstainless steelfor beds

Product information
Provita IV rods and stands are designed for use in hospitals, intensive care units and normal care wards. The Provita Normal Care model offers a compact, mobile infusion stand with an extensive accessory range to suit routine clinical applications.

Advantages

• Secure suspension of infusion bottles and bags for controlled infusion management
• Mobile design with mono castors for flexible positioning

Technology

• Lightfast plastic components
• Stainless steel tubes manufactured to DIN EN 10217-7
• Material ultrasonic and eddy-current tested (EN 10246-9/3)
• Integrated pull-out limiter prevents separation of adjustable tubes
• Safety bottle cross according to DIN ISO 15375
• High-performance 80 mm mono castors for good maneuverability
• Sealing cap protects the IV pole from contaminating liquids

Safety

• Base legs sealed with plastic plugs to eliminate sharp edges
• Built-in safety distance reduces risk of pinching during height adjustment
• Integrated base weights enable secure attachment of pumps and medical devices
• Rounded bottle hooks reduce risk of injury
• Hook geometry prevents infusion bottles from falling out

Application

• Suitable for wipe disinfection and daily hygienic routines
• Quick assembly via plug-in/out system with a single screw connection
• Comfortable height adjustment using screw mechanism with surface-friendly clamping element

Technical specifications

• Field of application: Normal Care
• Material: Stainless steel
• Colour of plastic parts: Blue
• Bottle holder: Stainless steel bottle cross for screwing in
• Number of hooks: 4
• Arrangement of hooks: 90° to each other
• Type of height adjustment: Screw height adjustment
• Maximum height: 2,140 mm ± 10 mm
• Minimum height: 1,300 mm ± 10 mm
• Inner tube diameter: Ø 18 mm
• Outer tube diameter: Ø 25 mm
• Length of outer tube: 1,000 mm
• Base leg profile: 25 x 25 mm
• Base weight: Weighted
• Base diameter: Ø 635 mm
• Castors: Mono castors
• Castor diameter: Ø 80 mm
• Number of castors: 5; 2 with brakes and electrical conductivity
• Drip vessel sterilizable: Yes
• Total load capacity (kg): 11
• Load capacity per system (kg): 8
• Load capacity per hook (kg): 2
