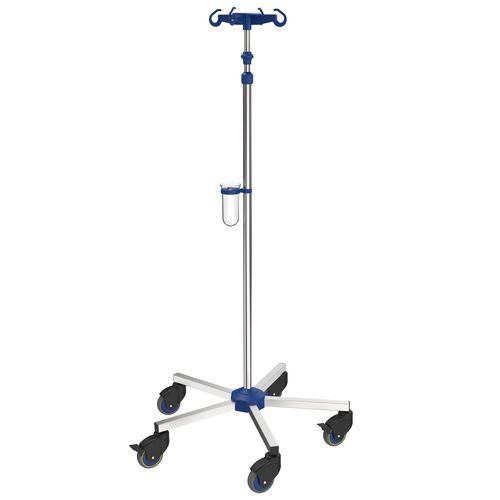

IV pole on casters I-N42111

4-hookfor bedsheight-adjustable

Information
Provita IV-Rods and Stands are used in hospitals, intensive care and normal care wards. The Provita Normal Care IV stand is designed for everyday clinical use, offering mobile support for infusion bottles and bags with a compact footprint and easy handling.

Advantages

• Secure hanging of infusion bottles and bags for reliable infusion management
• Mobile design with flexible use across wards and treatment areas

Economy

• Compact packaging to reduce storage volume and shipping costs

Safety

• Base legs sealed with plastic plugs to eliminate sharp edges
• Built-in safety distance reduces risk of pinching when extending or retracting the pole
• Rounded bottle hooks minimize risk of injury
• Hook geometry prevents infusion bottles from slipping out

Application

• Hygienic properties suitable for wipe disinfection
• Comfortable one-hand safety height adjustment for fast positioning
• Quick assembly with plug-in system and a single screw connection

Technical specifications

• Field of application: Normal Care
• Material: Chromed steel
• Colour of plastic parts: Blue
• Bottle holder: Plastic bottle cross
• Number of hooks: 4
• Arrangement of the hooks: 90° to each other
• Type of height adjustment: One-hand height adjustment
• Maximum length/height: 2,180 mm ± 10 mm
• Minimum length/height: 1,310 mm ± 10 mm
• Inner tube diameter: Ø 18 mm
• Outer tube diameter: Ø 25 mm
• Length of outer tube: 1,000 mm
• Base leg profile: 25 x 25 mm
• Base weight: Unweighted
• Base diameter: Ø 635 mm
• Castors: Mono castors
• Castor diameter: Ø 80 mm
• Number of castors: 5 (2 with brakes and electrical conductivity)
• Drip vessel sterilizable: Yes
• Total load capacity (kg): 9.5
• Load capacity per system (kg): 8
• Load capacity per hook (kg): 2
• Packaging unit (Pair) — Width Box1: 0.19 m
• Packaging unit (Pair) — Height Box1: 0.10 m
• Packaging unit (Pair) — Length Box1: 1.19 m
• Packaging unit (Pair) — Weight Box1: 7.60 kg
• Packaging unit (Unit) — Width Box1: 0.19 m
• Packaging unit (Unit) — Height Box1: 0.10 m
• Packaging unit (Unit) — Length Box1: 1.19 m
• Packaging unit (Unit) — Weight Box1: 4.10 kg
