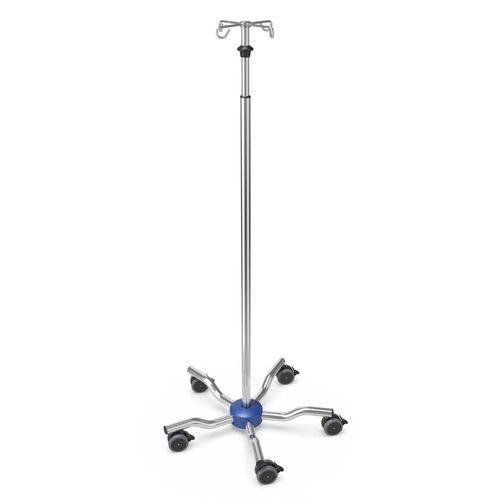

IV pole on casters I-LOW004

4-hookheavy-dutystainless steel

Information
Provita IV-Rods and Stands are employed in numerous doctor practices as well as intensive and normal care. To satisfy the demands in hospitals and everyday care, Provita offers for every application area an individual and robust drip stand solution complemented by an extensive accessory program.

Advantages

• Effective infusion care by securely hanging infusion bottles and bags
• Mobile and flexible application possibilities
• Very high resilience through the processing of high-quality materials

Technology

• All plastic parts are lightfast
• Stainless steel tubes according to DIN EN 10217-7
• Material ultrasonic and eddy current tested (according to EN 10246-9/3)
• Increased stability through foot base made of high-quality machined aluminum
• The integrated pull-out limiter prevents the adjustable tubes from separating
• Safety bottle cross according to DIN ISO 15375

Safety

• The base legs are sealed with plastic plugs (no risk of injury)
• Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
• No risk of injury thanks to the rounded shape of the bottle hooks
• The geometry of the hooks prevents the infusion bottle from falling out

Application

• The outer tube offers enough space to attach various devices at a user-friendly operating height

Product properties (table)
Field of application: Intensive Care
Material: Stainless steel / Plastic
Colour of plastic parts: Blue / Black
Number of hooks: 4
Arrangement of the hooks: 90° to each other
Type of height adjustment: One-hand height adjustment
Maximum length/height: 2.280 mm
Minimum length/height: 1.530 mm
Inner tube diameter: Ø 25 mm
Outer tube diameter: Ø 33,7 mm
Length of outer tube: 1.200 mm
Base leg profile: Ø 33,7 mm
Base weight: Weighted
Castors: Twin castors
Castor diameter: Ø 75 mm
Number of castors: 5 with brakes and elect. conductivity
Total load capacity (kg): 13
Load capacity per system (kg): 8
Load capacity per hook (kg): 2

Characteristics / Technical specifications

• Field of application: Intensive Care
• Material: Stainless steel / Plastic
• Colour of plastic parts: Blue / Black
• Number of hooks: 4 (arranged 90° to each other)
• Height adjustment: One-hand height adjustment; min 1.530 mm – max 2.280 mm
• Inner tube diameter: Ø 25 mm; Outer tube diameter: Ø 33,7 mm; Length of outer tube: 1.200 mm
• Base: Ø 33,7 mm profile; weighted base
• Castors: Twin castors, Ø 75 mm; 5 castors with brakes and electrical conductivity
• Load capacities: Total 13 kg; per system 8 kg; per hook 2 kg
• Packaging (unit): Width 0,21 m; Height 0,13 m; Length 1,46 m; Weight 12,50 kg
