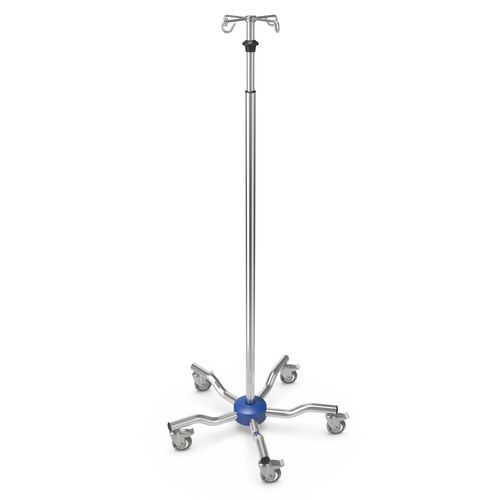

IV pole on casters I-LOW014

4-hookheavy-dutystainless steel

Product

• IV stand Low Gravity — 1-Hand / Heavy Duty Model

Information

• Provita IV-Rods and Stands are used in hospitals, intensive care units and clinics. Provita provides tailored drip-stand solutions with a wide accessory program for each application.

Advantages

• Secure suspension of infusion bottles and bags for reliable infusion therapy
• High mechanical resilience thanks to stainless steel construction and quality plastics

Technology

• All plastic components are lightfast
• Stainless steel tubes according to DIN EN 10217-7
• Integrated pull-out limiter prevents separation of adjustable tubes

Economy

• Compact packaging reduces shipping volume and logistics costs

Safety

• Base legs sealed with plastic plugs to eliminate sharp edges
• Built-in safety distance minimizes risk of pinching when adjusting the pole
• Rounded bottle hooks prevent injuries and keep infusion bottles in place

Application

• The outer tube provides space to mount devices at an ergonomic operating height

Product Details
Field of application: Intensive Care
Material: Stainless steel / Plastic
Colour of plastic parts: Blue / Black
Arrangement of the hooks: 90° to each other
Type of height adjustment: One-hand height adjustment
Maximum length/height: 2,290 mm
Minimum length/height: 1,540 mm
Inner tube diameter: Ø 25 mm
Outer tube diameter: Ø 33.7 mm
Length of outer tube: 1,200 mm
Base leg profile: Ø 33.7 mm
Base weight: Weighted
Base diameter: Ø 680 mm
Castors: Apparatus castors
Castor diameter: Ø 75 mm
Number of castors: 5 with brakes and electrical conductivity
Total load capacity (kg): 13
Load capacity per system (kg): 8
Load capacity per hook (kg): 2

Packaging dimensions
Packaging unit: Unit
Width Box1: 0.21 m
Height Box1: 0.13 m
Length Box1: 1.46 m
Weight Box1: 12.50 kg

Technical specifications

• Max. height: 2,290 mm
• Min. height: 1,540 mm
• Inner tube Ø: 25 mm
• Outer tube Ø / base leg profile: 33.7 mm
• Base diameter: 680 mm
• Castor diameter: 75 mm (apparatus castors)
• Number of castors: 5 (with brakes and electrical conductivity)
• Total load capacity: 13 kg; per system: 8 kg; per hook: 2 kg
• Material: Stainless steel / Plastic
