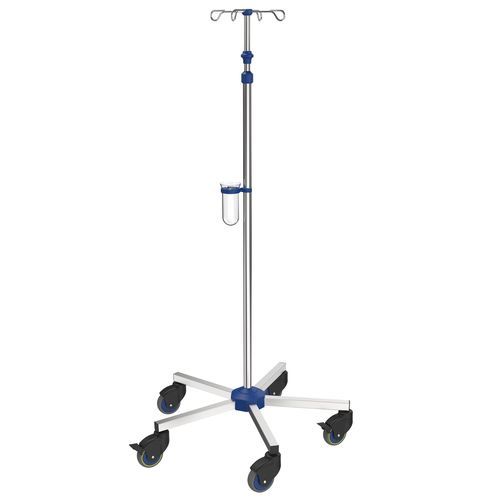

IV pole on casters I-N12113

4-hookstainless steelfor beds

Information Provita IV-rods and stands are used in clinical departments, intensive care and normal care units. The I-N12113 IV stand is designed to provide a hygienic, mobile and easy-to-use solution for infusion therapy in normal care settings.

Advantages

• Secure suspension of infusion bottles and bags for effective infusion management
• Mobile design with five castors enables flexible positioning at the bedside

Economy

• Compact packaging reduces shipping volume and logistics costs

Safety

• Base legs sealed with plastic plugs to minimise risk of injury
• Built-in safety distance reduces pinching risk when extending/retracting the pole
• Rounded bottle hook shape and secure hook geometry prevent injury and bottle dislodgement

Application

• Wipe-disinfectable surfaces support hospital hygiene protocols
• One-hand safety height adjustment for ergonomic use by clinical staff
• Fast assembly via plug in/out system with a single screw connection

Product details Field of application: Normal Care
Material: Stainless steel
Colour of plastic parts: Blue
Bottle holder: Stainless steel bottle cross for hammering in
Number of hooks: 4
Arrangement of the hooks: 90° to each other
Type of height adjustment: One-hand safety height adjustment
Maximum length/height: 2.175 mm ± 10 mm
Minimum length/height: 1.305 mm ± 10 mm
Inner tube diameter: Ø 18 mm
Outer tube diameter: Ø 25 mm
Length of outer tube: 1.000 mm
Base leg profile: 25 x 25 mm
Base weight: Unweighted
Base diameter: Ø 635 mm
Castors: Mono castors
Castor diameter: Ø 80 mm
Number of castors: 5; 2 with brakes and electrical conductivity
Drip vessel sterilizable: Yes
Total load capacity (kg): 9.5
Load capacity per system (kg): 8
Load capacity per hook (kg): 2
Packaging unit (example): Pair / Unit
Packaging dimensions (example Box1) - Width: 0,19 m; Height: 0,10 m; Length: 1,19 m; Weight Box1 (pair): 7,60 kg; Weight Box1 (unit): 4,10 kg

Technical specifications

• Product name: IV-Stand Normal care
• Material: Stainless steel
• Colour of plastic parts: Blue
• Model / article number on page: I-N12113
• Number of bottle hooks: 4 (arranged 90° to each other)
• Height adjustment: One-hand safety height adjustment; range min 1.305 mm ±10 mm to max 2.175 mm ±10 mm
• Inner tube Ø: 18 mm; Outer tube Ø: 25 mm; Outer tube length: 1.000 mm
• Base: 25 x 25 mm profile; base diameter Ø 635 mm
• Castors: 5 mono castors, Ø 80 mm; 2 castors with brakes and electrical conductivity
• Load capacities: total 9.5 kg; per system 8 kg; per hook 2 kg
• Drip vessel: sterilizable
• Packaging examples: Pair (7.60 kg) and Unit (4.10 kg); Box dimensions approx. 1,19 m x 0,19 m x 0,10 m
