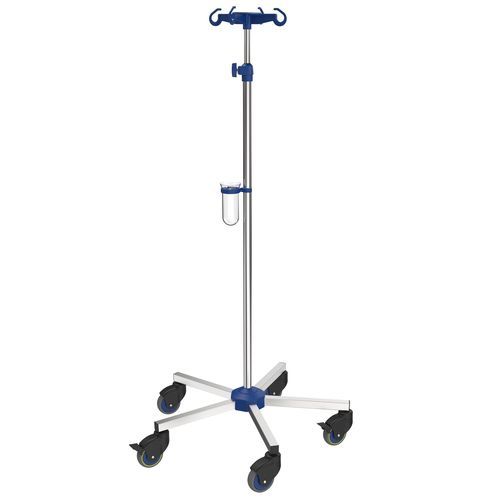

IV pole on casters I-N12121

4-hookstainless steelheight-adjustable

Product overview
Provita IV-Rods and Stands are intended for use in medical facilities, including intensive care and normal care units. The IV-Stand Normal care is designed for routine hospital use and is compatible with a comprehensive accessory program.

Advantages

• Secure suspension of infusion bottles and bags for reliable infusion therapy
• Mobile design with flexible application options

Technology

• All plastic components are lightfast
• Stainless steel tubes according to DIN EN 10217-7
• Material tested by ultrasonic and eddy current methods (EN 10246-9/3)
• Integrated pull-out limiter prevents separation of adjustable tubes
• Safety bottle cross according to DIN ISO 15375
• High-performance running behaviour via 80 mm mono castors
• Sealing cap protects the pole from contact with hygienically sensitive liquids

Economy

• Compact packaging reduces shipping volume and cost

Safety

• Base legs sealed with plastic plugs to eliminate injury risk
• Built-in safety distance reduces pinch risk when extending/retracting tubes
• Rounded bottle-hook shape lowers risk of injury
• Hook geometry prevents infusion bottles from falling out

Application

• Hygienic properties suited to wipe disinfection
• Quick assembly via plug-in/out system with one screw connection
• Comfortable height adjustment using screw-height mechanism with integrated, surface-gentle clamping element

Product properties (table)

• Field of application: Normal Care
• Material: Stainless steel
• Colour of plastic parts: Blue
• Bottle holder: Plastic bottle cross
• Number of hooks: 4
• Arrangement of the hooks: 90° to each other
• Type of height adjustment: Screw height adjustment
• Maximum length/height: 2.150 mm ± 10 mm
• Minimum length/height: 1.310 mm ± 10 mm
• Inner tube diameter: Ø 18 mm
• Outer tube diameter: Ø 25 mm
• Length of outer tube: 1.000 mm
• Base leg profile: 25 x 25 mm
• Base weight: Unweighted
• Base diameter: Ø 635 mm
• Castors: Mono castors
• Castor diameter: Ø 80 mm
• Number of castors: 5 (2 with brakes and electrical conductivity)
• Drip vessel sterilizable: Yes
• Total load capacity (kg): 9.5
• Load capacity per system (kg): 8
• Load capacity per hook (kg): 2

Packaging dimensions

• Packaging unit: Pair — Box1 Width: 0,19 m; Height: 0,10 m; Length: 1,19 m; Weight: 7,60 kg
• Packaging unit: Unit — Box1 Width: 0,19 m; Height: 0,10 m; Length: 1,19 m; Weight: 4,10 kg

Technical specifications

• Product name: IV-Stand Normal care
• Model designation: IV-Stand Normal care
• Material main parts: Stainless steel (tubes according to DIN EN 10217-7)
• Plastic parts: lightfast, colour Blue
• Height adjustment: Screw-height adjustment with integrated clamp
• Height range: 1.310 mm ±10 mm to 2.150 mm ±10 mm
• Tube diameters: inner Ø 18 mm, outer Ø 25 mm; outer tube length 1.000 mm
• Bottle holder: Plastic bottle cross with 4 safety hooks arranged 90° to each other
• Castors: 5 mono castors Ø 80 mm (2 with brakes and electrical conductivity)
• Load capacities: total 9.5 kg; per system 8 kg; per hook 2 kg
• Drip vessel: sterilizable
• Packaging options: Pair and Unit (dimensions and weights provided above)
