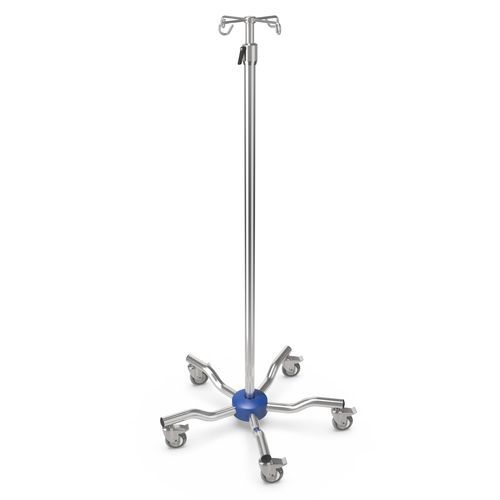

IV pole on casters I-LOW013

4-hookheavy-dutystainless steel

Product overview
Provita IV-Rods and Stands are suitable for intensive care units and general wards. The Low Gravity IV stand provides a compact, corrosion-resistant solution with an adjustable stainless steel pole and a weighted base designed for stability and safe device attachment.

Product highlights

• Softdrop system for controlled lowering of the inner tube

Advantages

• Secure hanging of infusion bottles and bags for reliable infusion management
• Reinforced bottle holder supports up to 5 litres

Technology

• Stainless steel tubes conforming to DIN EN 10217-7
• All plastic parts are lightfast
• Integrated pull-out limiter prevents tube separation
• Outer tube length 1,200 mm to allow device mounting at ergonomic height
• Base made of glass-fibre reinforced plastic for increased corrosion resistance

Economy

• Compact packaging reduces shipping costs

Safety

• Base legs sealed with plastic plugs to eliminate sharp edges
• Built-in safety distance reduces pinch risk during height adjustment
• Rounded bottle hooks prevent injury and minimise risk of bottle loss
• Softdrop system dampens lowering movement

Application

• Designed for Intensive Care; outer tube provides space to attach monitoring and auxiliary devices at user-friendly height

Product specifications
Field of application: Intensive Care
Material: Stainless steel / Plastic
Colour of plastic parts: Blue / Black
Number of hooks: 4
Arrangement of the hooks: 90° to each other
Type of height adjustment: Stainless steel screw height adjustment
Maximum length/height: 2,270 mm
Minimum length/height: 1,420 mm
Inner tube diameter: Ø 25 mm
Outer tube diameter: Ø 33.7 mm
Length of outer tube: 1,200 mm
Base leg profile: Ø 33.7 mm
Base weight: Weighted
Base diameter: Ø 680 mm
Castors: Apparatus castors
Castor diameter: Ø 75 mm
Number of castors: 5 with brakes and electrical conductivity
Total load capacity (kg): 35
Load capacity per system (kg): 20
Load capacity per hook (kg): 5

Technical specifications

• Field of application: Intensive Care
• Material: Stainless steel / Plastic
• Number of hooks: 4 (arranged 90° to each other)
• Height adjustment: Stainless steel screw height adjustment; range 1,420 mm – 2,270 mm
• Tube diameters: inner Ø 25 mm / outer Ø 33.7 mm
• Base: weighted, diameter Ø 680 mm, base leg profile Ø 33.7 mm
• Castors: 5 apparatus castors with brakes and electrical conductivity, diameter Ø 75 mm
• Load capacities: total 35 kg; per system 20 kg; per hook 5 kg
• Reinforced bottle holder for up to 5 litres
• Corrosion-resistant base (glass-fibre reinforced plastic)
