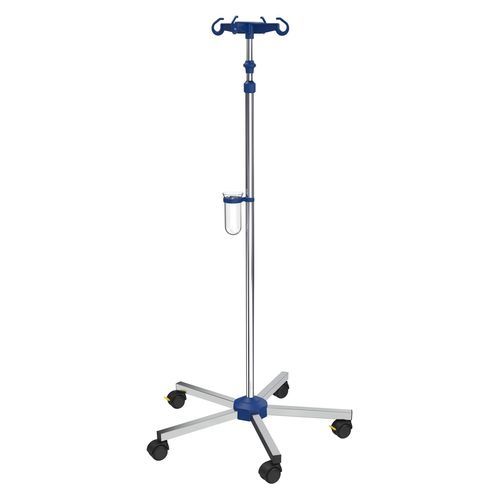

IV pole on casters I-N41111

4-hookfor bedsheight-adjustable

Overview
Provita IV-rods and stands are used in numerous medical practices as well as in intensive and normal care. To meet requirements in hospitals and daily normal care, this IV stand provides a dedicated solution for routine infusion management, complemented by a range of compatible accessories.

Advantages

• Reliable infusion handling by securely hanging infusion bottles and bags
• Mobile and flexible use for ward and bedside care

Economy

• Compact packaging for cost-efficient shipping and storage

Safety

• Base legs sealed with plastic plugs to eliminate risk of injury
• Built-in safety distance reduces risk of pinching during pole extension/retraction
• Rounded bottle hooks prevent injury and ensure secure support
• Hook geometry prevents infusion bottles from slipping out

Application

• Optimal hygienic properties (wipe disinfection)
• One-hand safety height adjustment for fast, ergonomic use
• Quick assembly via plug-in system with a single screw connection

Material
Chromed steel

Technical specifications

• Field of application: Normal Care
• Material: Chromed steel
• Colour of plastic parts: Blue
• Bottle holder: Plastic bottle cross
• Number of hooks: 4
• Arrangement of the hooks: 90° to each other
• Type of height adjustment: One-hand height adjustment
• Maximum length/height: 2,130 mm ± 10 mm
• Minimum length/height: 1,260 mm ± 10 mm
• Inner tube diameter: Ø 18 mm
• Outer tube diameter: Ø 25 mm
• Length of outer tube: 1,000 mm
• Base leg profile: 25 x 25 mm
• Base weight: Unweighted
• Base diameter: Ø 635 mm
• Castors: Twin castors
• Castor diameter: Ø 50 mm
• Number of castors: 5 (2 with brakes and electrical conductivity)
• Drip vessel sterilizable: Yes
• Total load capacity (kg): 9.5
• Load capacity per system (kg): 8
• Load capacity per hook (kg): 2
• Packaging unit (Pair) — Width Box1: 0.19 m; Height Box1: 0.10 m; Length Box1: 1.19 m; Weight Box1: 7.60 kg
• Packaging unit (Unit) — Width Box1: 0.19 m; Height Box1: 0.10 m; Length Box1: 1.19 m; Weight Box1: 4.10 kg
