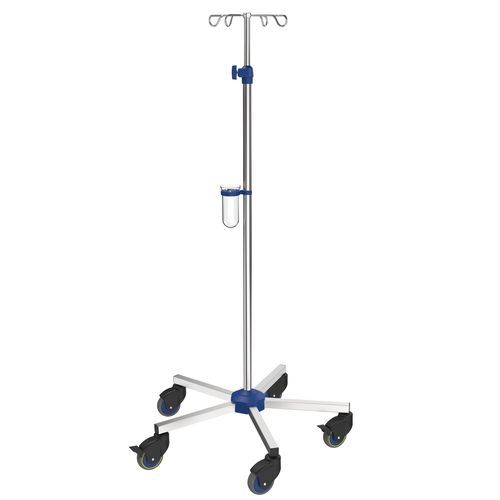

IV pole on casters I-N42222

4-hookfor bedsheight-adjustable

Information

• Provita IV-Rods and Stands are used in outpatient practices as well as in intensive and normal care. For hospital and routine care requirements, Provita provides modular drip stand solutions with a comprehensive accessory range.

Advantages

• Secure hanging of infusion bottles and bags for effective infusion management
• Mobile design with flexible application options

Technology

• All plastic parts are lightfast
• Integrated pull-out limiter prevents separation of adjustable tubes
• Bottle cross designed according to DIN ISO 15375
• Smooth mobility thanks to high-value Ø80 mm mono castors
• Sealing cap prevents hygienically sensitive liquids from entering the IV pole

Economy

• Compact packaging reduces shipping volume and cost

Safety

• Base legs sealed with plastic plugs to eliminate risk of injury
• Built-in safety distance reduces pinching risk during height adjustment
• Integrated base weight enables secure attachment of pumps and medical devices
• Rounded bottle hooks minimize risk of injury
• Hook geometry prevents infusion bottles from falling out

Application

• Good hygienic properties (suitable for wipe disinfection)
• Fast and tool-minimal assembly via plug-in system with a single screw connection
• Comfortable height adjustment using a screw mechanism with an integrated, surface-friendly clamping element

Product specifications (table)
Field of application: Normal Care
Material: Chromed steel
Colour of plastic parts: Blue
Bottle holder: Stainless steel bottle cross for screwing in
Number of hooks: 4
Arrangement of the hooks: 90° to each other
Type of height adjustment: Screw height adjustment
Maximum length/height: 2,140 mm ± 10 mm
Minimum length/height: 1,300 mm ± 10 mm
Inner tube diameter: Ø 18 mm
Outer tube diameter: Ø 25 mm
Length of outer tube: 1,000 mm
Base leg profile: 25 x 25 mm
Base weight: Weighted
Base diameter: Ø 635 mm
Castors: Mono castors
Castor diameter: Ø 80 mm
Number of castors: 5 (2 with brakes and electrical conductivity)
Drip vessel sterilizable: Yes
Total load capacity (kg): 11
Load capacity per system (kg): 8
Load capacity per hook (kg): 2

Packaging dimensions
Packaging unit: Unit
Width Box1: 0.19 m
Height Box1: 0.10 m
Length Box1: 1.19 m
Weight Box1: 6.80 kg

Technical specifications

• Field of application: Normal Care
• Material: Chromed steel
• Colour of plastic parts: Blue
• Bottle holder: Stainless steel bottle cross for screwing in
• Number of hooks: 4 (arranged 90° to each other)
• Height adjustment: Screw height adjustment (1,300 mm ± 10 mm to 2,140 mm ± 10 mm)
• Tube diameters: inner Ø 18 mm / outer Ø 25 mm
• Base leg profile: 25 x 25 mm; base diameter Ø 635 mm; base weighted
• Castors: 5 mono castors Ø 80 mm (2 with brakes and electrical conductivity)
• Load capacities: total 11 kg; per system 8 kg; per hook 2 kg
• Drip vessel sterilizable: Yes
• Packaging (Box1): 0.19 m (W) x 0.10 m (H) x 1.19 m (L); weight 6.80 kg
