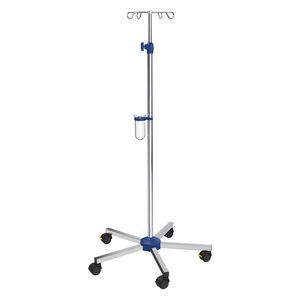

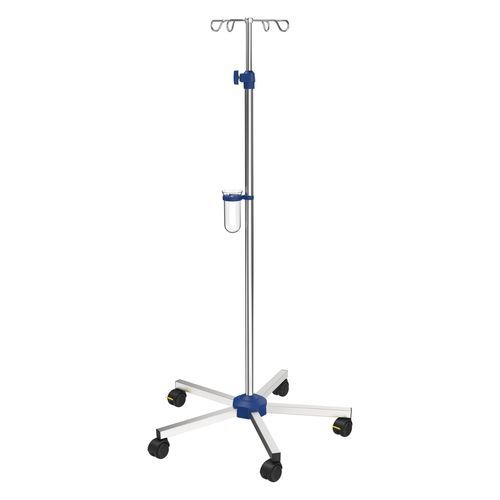

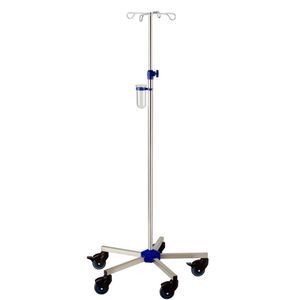

IV pole on casters I-N11222

4-hookstainless steelfor beds

Information
Provita IV rods and stands are used in numerous medical practices as well as in intensive and normal care. To meet hospital and everyday care requirements, Provita provides a specific drip-stand solution for each application area, supported by a comprehensive accessory range.

Advantages

• Secure suspension of infusion bottles and bags for effective infusion management
• Mobile and flexible for use across different care settings

Technology

• All plastic parts are lightfast
• Castors with non-marking tread
• Stainless steel tubes according to DIN EN 10217-7
• Material ultrasonic and eddy-current tested (according to EN 10246-9/3)
• Integrated pull-out limiter prevents adjustable tubes from separating
• Safety bottle cross according to DIN ISO 15375
• A sealing cap prevents contamination of the IV pole by hygienically sensitive liquids

Economy

• Compact packaging enables lower-cost shipping

Safety

• Base legs sealed with plastic plugs (reduces risk of injury)
• Low risk of pinching when retracting/extending the pole thanks to built-in safety distance
• Integrated base weight facilitates safer attachment of pumps and other medical equipment
• Rounded bottle hooks reduce risk of injury
• Hook geometry prevents infusion bottles from falling out

Application

• Optimal hygienic properties (wipe disinfection)
• Very easy and fast assembly via a plug-in system with only one screw connection
• Comfortable height adjustment via screw-height mechanism with integrated, surface-gentle clamping element

Product details
Field of application: Normal Care
Material: Stainless steel
Colour of plastic parts: Blue
Bottle holder: Stainless steel bottle cross for screwing in
Number of hooks: 4
Arrangement of the hooks: 90° to each other
Type of height adjustment: Screw height adjustment
Maximum length/height: 2,090 mm ± 10 mm
Minimum length/height: 1,250 mm ± 10 mm
Inner tube diameter: Ø 18 mm
Outer tube diameter: Ø 25 mm
Length of outer tube: 1,000 mm
Base leg profile: 25 x 25 mm
Base weight: Weighted
Base diameter: Ø 635 mm
Castors: Twin castors
Castor diameter: Ø 50 mm
Number of castors: 5; 2 with brakes and electrical conductivity
Drip vessel sterilizable: Yes
Total load capacity (kg): 11
Load capacity per system (kg): 8
Load capacity per hook (kg): 2

Packaging dimensions
Packaging unit: Unit
Width Box1: 0.19 m
Height Box1: 0.10 m
Length Box1: 1.19 m
Weight Box1: 6.80 kg

Characteristics / technical specifications

• Material: Stainless steel
• Colour of plastic parts: Blue
• Number of hooks: 4 (90° arrangement)
• Bottle holder: Stainless steel bottle cross (screw-in)
• Height adjustment: Screw height adjustment (integrated clamping element)
• Height range: Min 1,250 mm ±10 mm — Max 2,090 mm ±10 mm
• Inner tube Ø: 18 mm — Outer tube Ø: 25 mm — Outer tube length: 1,000 mm
• Base leg profile: 25 x 25 mm — Base diameter Ø: 635 mm — Base weighted
• Castors: Twin castors Ø 50 mm — 5 castors (2 with brakes and electrical conductivity)
• Total load capacity: 11 kg — Load per system: 8 kg — Load per hook: 2 kg
• Drip vessel sterilizable: Yes
