Orthopedic chest support AM-TX-10

pediatricfoamwith strap

Overview
Pectus excavatum (funnel chest) is a chest wall deformity in which the sternum is depressed. It often progresses during adolescent growth and, in severe cases, can compress the lungs and heart, causing breathing difficulty, fatigue and dizziness. Alongside surgical correction, physiotherapy and orthotic bracing with the EXCAVATUM device are established conservative treatment options.

Product description

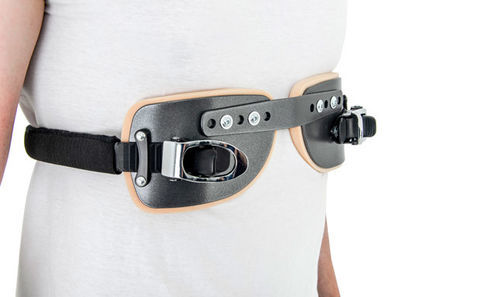

The EXCAVATUM brace is designed for conservative treatment of funnel chest. The brace remodels bones and cartilage over time by applying anterior-posterior compression (AP) via an innovative CALIPER BUCKLE system. Aluminum pads are made from lightweight, high-grade aluminum 6061 T6 (material used in aeronautics) to provide stable support. The internal pad surfaces are lined with medical foam to increase comfort over bony prominences. The device is intended for use during adolescence prior to skeletal maturity to optimize remodeling. When used systematically together with prescribed daily exercises, the brace supports correction of chest deformation and can improve respiratory function and circulation.

Key features

• Indication: pectus excavatum (funnel chest)
• Rigid frame with aluminum 6061 T6 pads and medical foam lining
• CALIPER BUCKLE closure system providing precise anterior-posterior compression with quick-release lever
• Provides controlled anterior and posterior compression (AP) to remodel bone and cartilage
• Designed for continuous use (recommended up to 23 hours per day)
• Waterproof (powder coated and galvanized) — usable while swimming or showering
• Low-profile design — discreet under clothing
• Class I medical device

Contraindications / Warnings
The brace is contraindicated for contact sports with collision risk and is not recommended in cold conditions with chronic cough due to the rigid aluminum components.

Sizes
Size 1 / M: patient height < 150 cm; waist circumference at the bottom of the ribs 60–85 cm
Size 2 / L: patient height > 150 cm; waist circumference at the bottom of the ribs 75–100 cm

Pad dimensions (total height / total width of pads):
Front: M: 9 cm (min front width: 27 cm – max 33 cm); L: 10 cm (min front width: 30 cm – max 36 cm)
Back: M: 12 cm; M total: 20 cm (back combined); L: 14 cm; L total: 23 cm

Gallery / Illustrations
Product images and clinical illustrations demonstrating funnel chest anatomy and brace application are provided in the product gallery.

Characteristics / Technical specifications

• Brand: 4medic
• Trade name: TORSO SUPPORT
• Model: AM-TX-10
• Code: AM-TX-10
• Indication: pectus excavatum (funnel chest)
• Materials: Aluminum 6061 T6 pads; medical foam lining on internal pad surface; elastic ladder strap with metal caliper buckle
• Closure system: CALIPER BUCKLE (ratcheting metal caliper buckle with release lever for immediate compression release)
• Recommended use: prior to skeletal maturity (adolescence); brace use up to ~23 hours/day combined with exercises
• Device class: Class I medical device (Regulation (EU) 2017/745)
• Waterproof: yes (powder coated and galvanized)
• Contraindications: contact sports, cold with chronic cough
• Sizes available: 1/M and 2/L (see sizes table above)
