TLSO support corset FIX-T-01

pediatric

Product overview

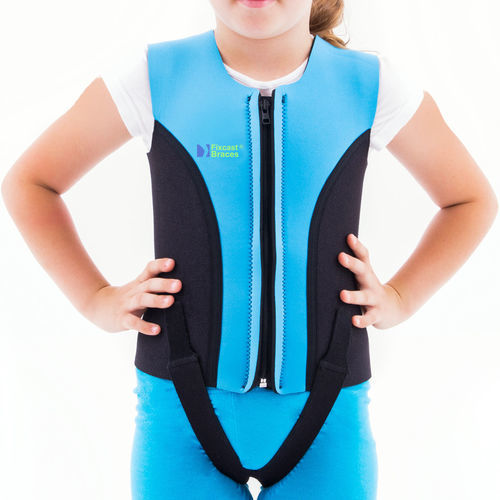

Pediatric trunk vest FIX-T-01 is a two-piece dynamic TLSO consisting of a front section with zipper and an interchangeable back section offered in multiple support levels. The vest stabilizes the child’s trunk and enhances proprioceptive input for neurological and orthopedic management.

Features

• TLSO brace
• Class I medical device
• Designed for continuous (24/7) therapy
• Waterproof; suitable for hydrotherapy (not a life preserver)
• Also available in an infant version
• Breathable materials
• Indicated for neurology and orthopedics
• Not for life saving

Indications

• Neurological disorders (sensory integration dysfunction, hypotonia, cerebral palsy, Down syndrome)
• Scheuermann’s disease
• Spondylolisthesis
• Pars interarticularis fracture
• Other vertebral fractures
• Inflammation of spinal joints
• Damage to back and paraspinal muscles
• Strains or sprains of the thoracic-lumbar spine

How it works
The vest comprises two parts: a standard front piece and interchangeable back panels that provide graduated support. The front section features a central zipper and Velcro closures (shoulder, crotch and lateral straps) for accurate fit and adjustment. The front is manufactured in thin colorful ActivePren™. A MEMORYcast™ back panel provides sagittal and frontal stabilization, reducing lateral bending. Continuous compression from the neoprene-based vest helps maintain thermal comfort and increases proprioceptive feedback. The product provides buoyancy for hydrotherapy but must not be used as a life preserver.

Back panel options

• I – COMPRESSION: Thin ventilated UniPren™ offering compression, temperature maintenance, pain reduction and proprioceptive input for neurological indications.
• II – MILD SUPPORT: UniPren™ with pockets for malleable aluminum stays; allows shaping to patient anatomy and delivers compression and paraspinal muscle support.
• III – HIGH SUPPORT: MEMORYcast™ thermoplastic panel providing increased stabilization for orthopedic applications.
• IV – HIGH FRONTAL SUPPORT: MEMORYcast™ panel configured for pronounced frontal support.

Materials and components

• ActivePren™: three-layer construction (two elastic jersey covers + neoprene foam core); soft, flexible, low-friction surface to reduce skin abrasion; stabilizing orthotic material.
• UniPren™: three-layer material with elastic polyamide outer cover (self-adhesive), neoprene foam core and elastic jersey inner cover; soft, flexible, self-adhesive to aid fit.
• MEMORYcast™: thermoplastic panel for heat molding; softens at approx. 60°C; properties similar to rigid nylon; biodegradable and reheatable/remoldable per clinician guidance.
• Aluminum stays: alloy providing stiffness with low weight; rounded ends to prevent tissue or product damage; available in various widths/thicknesses; can be pre-profiled or supplied flat and manually shaped.

Available sizes (measurements)
Size | Torso circumference (A) | Trochanter greater to under-arm length (B)
1 | 40–50 cm | 17–22 cm
1/A | 40–50 cm | 22–27 cm
2 | 48–65 cm | 22–27 cm
2/A | 48–65 cm | 27–31 cm
3 | 60–70 cm | 27–31 cm
4 | 60–70 cm | 31–35 cm
4/A | 60–70 cm | 35–40 cm
5 | 68–80 cm | 35–40 cm

Total rear height: size 1: 30 cm; 2: 36 cm; 3: 40 cm; 4: 44 cm; 5: 50 cm.

Other
Product is shipped in random color. Warning: do not apply to skin if hot. Not to be used as a life preserver.

Downloads available

• Declaration of Conformity EC
• Product setup (PDF)
• User manual

Technical specifications

• Code: FIX-T-01
• Trade name: TORSO SUPPORT
• Model: FIX-T-01
• Category: Spine braces / Torso braces
• Medical device class: Class I (Regulation (EU) 2017/745)
• Product type: Pediatric trunk vest, two-piece (front + interchangeable back panels)
• Back panel options: Compression (UniPren™), Mild Support (UniPren™ + aluminum stays), High Support (MEMORYcast™), High Frontal Support (MEMORYcast™)
• Main materials: ActivePren™, UniPren™, MEMORYcast™ thermoplastic, aluminum stays
• Intended uses: neurological disorders, Scheuermann’s disease, spondylolisthesis, spinal fractures, spinal joint inflammation, paraspinal muscle damage, thoracic-lumbar strains/sprains
• Therapy: Suitable for 24/7 therapy; waterproof and suitable for hydrotherapy (not a life preserver)
• Available sizes: 1, 1/A, 2, 2/A, 3, 4, 4/A, 5 with specified torso circumferences and trochanter-underarm lengths
