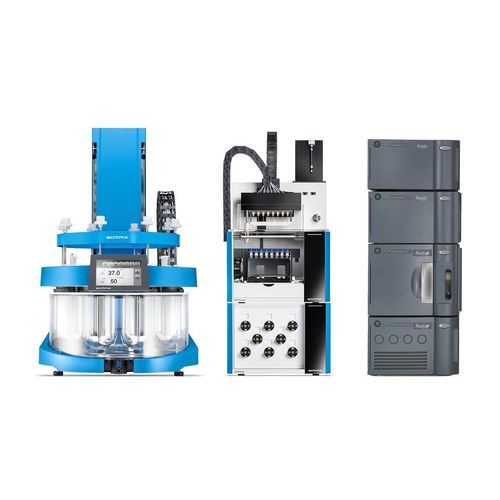

Semi-automatic dissolution tester ATS Xtend™ LC On-/Offline

for the pharmaceutical industrywith HPLC analysisbenchtop

Description
The ATS Xtend™ LC On-/Offline is a semi-automated dissolution testing solution that performs unattended sampling, filtration, buffering/cooling and direct automated injection of collected dissolution samples into an external HPLC / UPLC system via the SAM sample manager. The system is designed to minimize time from sampling to injection and to reduce manual handling and associated errors.

Benefits

• INJECTION - Unattended injection of dissolution samples directly into a liquid chromatography system.
• ERROR PREVENTION - Eliminates time-consuming and error-prone manual re-racking of collected samples.
• TIME - Reduces time from sampling to injection of filtered samples to an absolute minimum.
• COOLING - Optional cooling for the sample manager to prevent degradation of buffered samples.
• FILTRATION - Fine filtration down to 0.2 microns to prevent clogging of HPLC / UPLC columns.
• INTEGRATION - Flexible integration with different HPLC / UPLC brands and systems.
• AUTOMATED - Highly repeatable sampling, filtration and injection into HPLC / UPLC.

Automation
The system automates sampling from dissolution vessels, pre-filtration and final filtration, buffering/collection in the SAM sample manager, and sequential injection into the connected chromatography unit. Parallel handling is supported so the SAM can inject samples continuously while collecting the next samples from running tests. Integrated routines can flush the injection loop to prevent carry-over.

Highlights

• Automated injection: Samples from all vessels are filtered (down to 0.2 µm) and collected in the SAM sample manager, then injected sequentially into HPLC / UPLC.
• Flexible filtration: Support for a range of filters (tip/cannula, disc filters, 25 mm syringe filters) and automated filter changes with an integrated filter station.
• Parallel processing: SAM handles injection and collection in parallel for multi-timepoint, delayed release and modified release methods; optional powerful cooling for buffered samples.
• Carry-over prevention: Special cleaning routines flush the HPLC/UPLC injection loop before the next sample to prevent cross-contamination.
• Advanced monitoring: Individual vessel temperature logging and CenterView™ video monitoring for per-vessel process documentation.

Modules and typical components

• AT dissolution tester - Xtend™ dissolution bath with flexible sampling & monitoring functions.
• SAM SR sample manager - Collects and buffers dissolution samples and injects them sequentially into HPLC / UPLC.
• FS filter station - Automated syringe/disc filter change station for multi-timepoint methods (DR/MR).
• CP piston pump - Robust pump for pushing samples through filters and handling foaming media.
• HPLC / UPLC - External liquid chromatography system for direct injection and analysis.
• MPS media station - Mobile media preparation station to heat, degas and dispense medium.
• WinSOTAX®plus - Dissolution data management and analysis software (21 CFR Part 11 capabilities noted for data control and reporting).
• q-doc® software - Data management solution with built-in compliance features.
• CenterView™ - Video monitoring option for individual vessel observation and recording.

Technical specifications

• Automated direct injection from dissolution tester to HPLC / UPLC via SAM sample manager.
• Filtration capability down to 0.2 microns.
• Integrated automated filter change station (FS) for multi-timepoint DR/MR methods.
• Handles sampling from 6–8 vessels (support for typical 6–8 vessel dissolution testers).
• Parallel operation: continuous injection while collecting next samples.
• Optional cooling for the sample manager to prevent sample degradation.
• Carry-over prevention via injection-loop flushing routines.
• Flexible integration with different brands/models of HPLC / UPLC.
• Optional modules: media preparation (MPS), video monitoring (CenterView™), data management (WinSOTAX®plus, q-doc®), CP piston pump for challenging media.
• Designed for highly repeatable, unattended operation to reduce manual handling errors.
