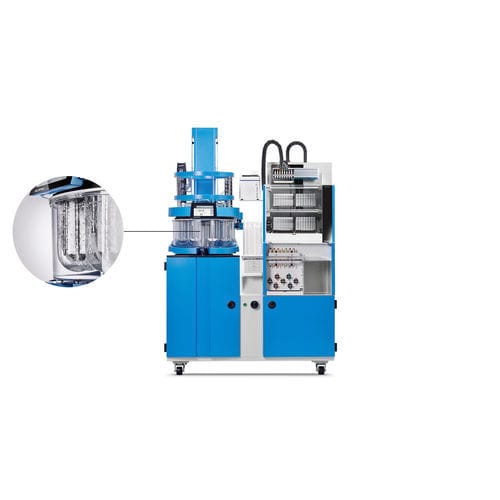

Dissolution tester cleaning station CS-F

water-jetrotaryautomated

Overview
Integrated module for spray cleaning and automated emptying of vessels in ATF Xtend™ systems. Designed for seamless integration with fully automated ATF Xtend dissolution testers, the CS-F Cleaning Station performs automated emptying and cleaning of all vessels and liquid paths.

Key functions

• EMPTY - Simultaneously empties all vessels of the integrated ATF Xtend dissolution bath, removing undissolved particles and residues.
• CLEAN - Automated power washing of individual vessels using rotating spray nozzles.
• COMPLETE - Cleans all liquid paths including sampling and return lines.
• REPRODUCIBLE - Ensures consistent emptying and cleaning cycles.
• VALIDATION - Supports validation of cleaning processes for different media and methods.
• UNLIMITED - Enables automated cleaning after each dissolution test without restriction.
• INTEGRATED - Built into the ATF Xtend™ system design for synchronized operation.

Highlights

• Flexible waste cannulas automatically position to vessel bottoms for complete emptying.
• Clean-in-place routines with rotating spray nozzles; programmable multiple cycles using hot/cold DI water or cleaning agents can be saved per product.
• Validated cleaning routines reduce carry-over and cross-contamination; product-specific procedures can be embedded in dissolution methods.

Operation details

• Automated simultaneous vessel emptying and spray cleaning.
• Flexible waste cannulas for thorough removal of residues and undissolved particles.
• Rotating spray nozzles provide targeted power washing of each vessel.
• Cleans sampling lines, return lines and other liquid paths within the system.
• Programmable, product-specific cleaning routines with options for multiple cycles and different cleaning media.
• Designed for unlimited automated cleaning between dissolution runs to ensure reproducible and validated results.

Specifications

• Model / Module type: CS-F (cleaning station module for ATF Xtend systems)
• Integration: Integrates into ATF Xtend™ fully automated dissolution testers
• Primary functions: Simultaneous vessel emptying; automated spray cleaning; cleaning of sampling and return lines
• Cleaning methods: Clean-in-place with rotating spray nozzles; multiple wash cycles; hot and cold DI water; compatible cleaning agents
• Waste handling: Flexible waste cannulas that reach vessel bottom for complete emptying
• Automation: Programmable, product-specific procedures; routines can be saved per product
• Validation: Supports validated cleaning processes to prevent carry-over and cross-contamination
• Use case: Automated cleaning between dissolution test runs without limitations
