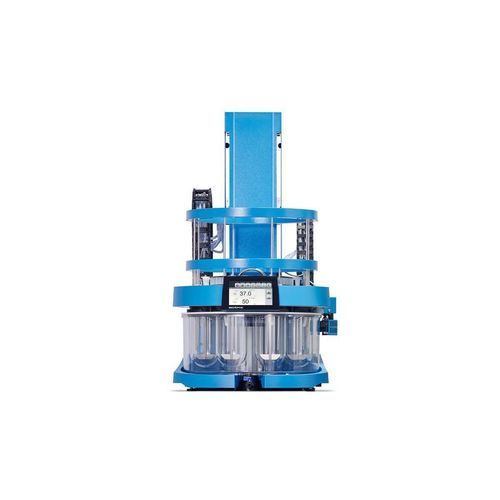

Fully-automatic dissolution tester AT-F

for the pharmaceutical industryfor in-vitro drug releasefor medical research

Overview
The AT-F dissolution bath is a modular dissolution bath pre-configured for integration into fully automated Xtend™ dissolution systems. It is intended for automated dissolution workflows and manages complete test sequences with minimal manual intervention.

Key Benefits

• MULTI-FUNCTION - Automatically fills, empties and spray-cleans all dissolution vessels
• MULTI-RUN - SmartAdd™ magazine for automated sequential introduction of dosage forms
• INTEGRATED - Pre-configured for fully automated operation with ATF Xtend™ systems
• DISPENSE - Degassed medium dispensed down the vessel wall to prevent re-aeration
• SAMPLE - Automated sampling with AutoLift™, HollowShaft™ or stationary cannulas
• MONITORING - In-vessel volume monitoring using contact-free sensor technology
• TEMPERATURE - Support for multi-temperature probes for in-vessel measurement

Highlights
Multi-function head
The AT-F is pre-configured with a multi-function head that integrates up to eight functions per vessel, including media inlets, motorized waste cannulas, rotating spray nozzles, return lines, temperature probes and motorized sampling cannulas, enabling coordinated automated operations across Xtend™ modules.

SmartAdd™ tablet magazine
SmartAdd™ enables continuous test sequences: exchange complete tablet magazines or add samples during a running sequence. This supports automated DOE in R&D and routine QC testing by avoiding downtime and allowing preparation of subsequent runs while tests continue.

Fill vessels
When combined with the MP-F media preparation module, the AT-F fills vessels automatically. Media is dispensed down the vessel wall to avoid re-aeration. Delivered volumes are confirmed gravimetrically by MP-F and in-vessel volumes are monitored throughout the test.

Empty & Clean
Paired with the CS-F module, the AT-F automatically empties vessels at the end of runs and initiates programmed washing routines. Cleaning procedures can be customized and saved per product to ensure repeatable results.

Additional Functional Details

• Automated vessel filling with careful dispensing to prevent re-aeration
• Motorized waste cannulas for automated emptying
• Rotating spray nozzles for automated power washing and configurable cleaning cycles
• Automated sampling options: motorized AutoLift™, HollowShaft™ or stationary cannulas
• Degassed medium handling to avoid re-introduction of air
• In-vessel volume monitoring using contact-free sensor technology
• Support for multi-temperature probes for precise in-vessel temperature monitoring
• Pre-configured for integration with MP-F (media preparation) and CS-F (cleaning) modules

Technical specifications

• Model: AT-F
• Integration: Pre-configured for fully automated ATF Xtend™ dissolution systems
• Per-vessel functionalities: up to eight combined functions (media inlet, waste cannula, spray nozzle, return line, temperature probe, sampling cannula, etc.)
• Automated sample introduction: SmartAdd™ tablet magazine compatible
• Sampling options: AutoLift™, HollowShaft™, stationary cannulas
• Media handling: degassed medium dispensed down vessel wall; compatible with MP-F for gravimetric confirmation
• In-vessel volume monitoring: contact-free sensor technology
• Temperature monitoring: multi-temperature probe support
• Cleaning: automated emptying and spray-clean routines, configurable per product (with CS-F)
• Use case: R&D, QC and routine testing with continuous/multi-run operation options
