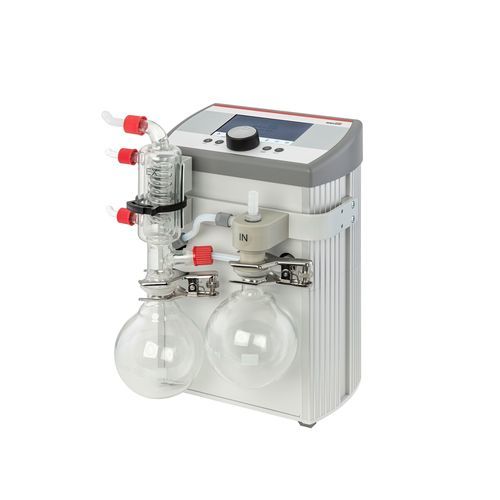

Rotary evaporator vacuum system LVS 105 T‑10 ef+

laboratorydiaphragmoil-free

Overview
The LVS 105 T‑10 ef+ is a chemical-resistant, oil-free diaphragm vacuum system with Ecoflex control, designed for precise vacuum regulation, efficient solvent handling and low-maintenance continuous operation. It combines a chemically resistant diaphragm pump with a digital vacuum controller and integrated protection components to support smooth distillation and solvent recovery.

Key features

• Ultimate pressure: 2 mbar
• Pumping speed: up to 18 l/min
• Ecoflex variable-speed vacuum control for energy-efficient operation
• Improved evaporation performance (up to ~40% faster under optimized conditions)
• Integrated digital vacuum controller with solvent library
• Oil-free, chemical-resistant diaphragm pump
• Heated pump heads to reduce condensation
• Inlet separator and exhaust condenser included
• Compact design and low-maintenance operation suitable for continuous use

User experience

• High-contrast 5” colour display with light/dark modes and multilingual interface
• Built-in solvent library for quick setup of common solvents
• Simple vacuum level adjustment and programmable control options
• Quiet operation with minimal vibration for laboratory environments

Ideal applications

• Rotary evaporators
• Distillation and solvent recovery
• Vacuum ovens
• Solvent concentration and sample preparation
• Multi-user vacuum systems (Netvac)
• General laboratory vacuum processes requiring chemical resistance

Performance highlights

• Deep, stable vacuum (< 2 mbar) enabling smooth evaporation without bumping or foaming
• Ecoflex speed control for accurate, controlled evaporation and improved throughput
• Integrated inlet separator and exhaust condenser for optimized solvent recovery and pump protection
• Chemical-duty diaphragm pump ensures oil-free operation and resistance to aggressive solvents

Technical data
Model: Chemistry Vacuum System, LVS 105 T‑10 ef+; Voltage: 115–230 V, 50/60 Hz
Ultimate pressure: 2 mbar
Pumping speed: 18 l/min
Free air displacement: ~1.2 m³/h
Control type: Ecoflex variable-speed vacuum control
Tubing needed: DN 8
Noise level: <44 dB
Weight: ~9.5 kg
Dimensions (W/D/H): ~250 × 260 × 435 mm
CAT. NO: 124184

Technical specifications

• Model: LVS 105 T‑10 ef+
• Cat. No: 124184
• Ultimate pressure: 2 mbar
• Pumping speed: 18 l/min
• Free air displacement: ~1.2 m³/h
• Control: Ecoflex variable-speed vacuum control
• Tubing: DN 8
• Noise level: <44 dB
• Weight: ~9.5 kg
• Dimensions (W/D/H): ~250 × 260 × 435 mm
• Oil-free, chemical-resistant diaphragm pump with inlet separator and exhaust condenser
