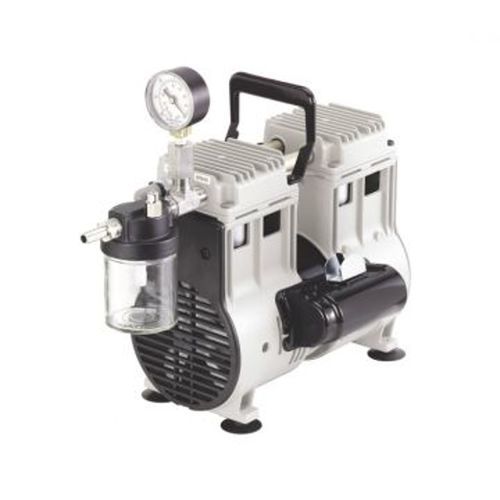

Laboratory vacuum pump WOB-L® 2585

pistonreciprocating pistonoil-free

Overview
The WOB-L® Piston Pump 2585 is a dry piston vacuum pump designed for continuous, high-flow evacuation and for handling water vapor. It provides oil-free operation to minimize maintenance and is supplied compact and lightweight with an inlet liquid trap and a mounted vacuum gauge. Delivery time will be confirmed in the order.

Key notes
Not recommended for pumping organic, acidic or basic vapors.

Features

• Dry piston design for oil-free operation and reduced maintenance
• High flow capability for vacuum requirements above 80 mbar
• Supplied with inlet liquid trap
• Mounted vacuum gauge included
• Lightweight, compact construction suitable for laboratory and industrial applications

Service / Accessories

• Hydrophobic in-line filter and hose DN 6 / DN 8 - 404008
• Replacement container (Glass) for WOB-L® 2561, 2567, 2581, 2585 - U1415B
• Connection-Kit 5 for Vacuum oven - 404005
• Connection-Kit 6 - 404006
• Vacuum regulator for WOB-L® 2581, 2585 - U2585K-50
• Maintenance Kit for WOB-L® 2585 - U2585K-03
• Seal Kit for WOB-L® 2585 - U2585K-04
• Post-Pump Protection - Exhaust Silencer for WOB-L® 2567, 2585 - U1412C

Technical specifications

• Article Number: U2585C-50
• Max. pumping speed at 50 Hz: 10 m³/h (166.7 l/min)
• Max. pumping speed at 60 Hz: 12.1 m³/h (201.7 l/min)
• Max. pumping speed at 60 Hz (cfm): 7.1 cfm (201.7 l/min)
• Ultimate pressure: 80 mbar
• Wired for: 230 V, 50/60 Hz
• Dimensions (W/D/H): 432 / 191 / 305 mm
• Weight: 11.2 kg (24.7 lbs)
