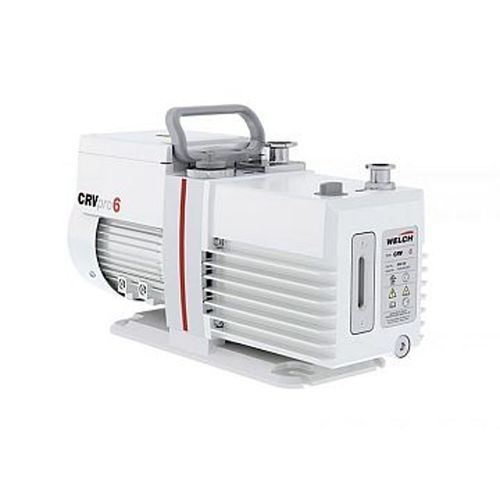

Laboratory vacuum pump CRVpro 6

vanerotary vanebuilt-in

Overview
The CRVpro 6 is a two-stage rotary vane vacuum pump engineered for low maintenance and consistent performance. It incorporates a gas ballast valve, forced oil lubrication, anti-suckback mechanism and thermal overload protection. Designed as a direct-drive unit, it is suitable for laboratory and light industrial vacuum service.

Key Benefits

• Consumes up to 36% less oil than comparable pumps
• Operates up to 10°C cooler than comparable pumps, reducing corrosion risk
• 40% larger oil capacity than comparable pumps, helping to dilute aggressive chemicals
• Chemical-resistant coating in the oil case and pump module to protect non-moving parts

Typical Applications

• Freeze drying (lyophilization)
• Vacuum ovens
• Schlenk lines
• Backing pumps for turbomolecular pumps
• Degassing
• Vessel/chamber evacuation

Performance Summary

• Max pumping speed: 6 m3/h (100 l/min)
• Ultimate pressure (typical): 2x10-3 mbar

Notes

• Direct-drive pumps are not recommended for filtration, aspiration, drying electrophoresis gels, or other applications requiring sustained operation above 30 torr.

Technical specifications

• Model: CRVpro 6
• Product family: Two-Stage Rotary Vane Pump (CRVpro)
• Free air displacement (50 Hz): 6 m3/h (100 l/min)
• Free air displacement (60 Hz): ~4.2 CFM (≈118 l/min)
• Pumping speed (50 Hz): 5.1 m3/h (85 l/min) (typical pumping speed values vary with pressure)
• Ultimate pressure (without gas ballast, partial): typically down to 5x10-4 mbar (model and condition dependent); typical ultimate pressure noted in overview: 2x10-3 mbar
• Ultimate pressure (with gas ballast): higher, application dependent
• Connection flange: KF16
• Ambient temperature range: 10 - 40 °C
• Noise level (50 Hz): ≤ 50 dB(A)
• Oil capacity: 1150 ml
• Motor speed (50/60 Hz): 1450 / 1740 rpm (typical)
• Motor power (50/60 Hz): 0.37 / 0.4 kW
• Weight: 22 kg
• Dimensions (L x W x H): 463 x 157 x 230 mm (without handle)
• Built-in features: gas ballast valve, forced oil lubrication, anti-suckback, thermal overload protection
