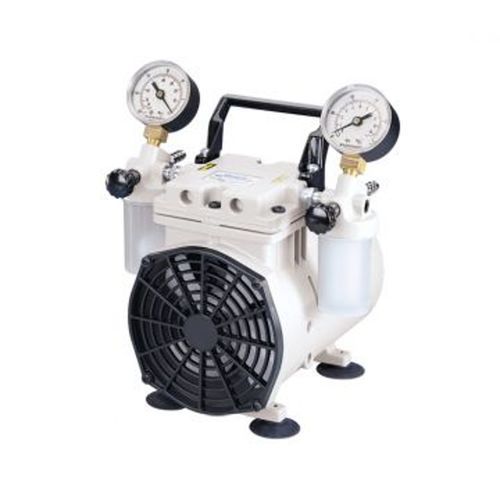

Filtration vacuum pump WOB-L® 2534

laboratorypistondry

Introduction
Item# 2534B-01
WOB-L® 2534 dry piston pump provides compact vacuum technology suitable for laboratory and industrial applications. Delivery time will be confirmed at order.

Product details
WOB-L® 2534 dry piston pumps are designed for physical applications, notably with aqueous solutions. Operating as both a vacuum pump and a compressor, they are suitable for filtration, gas sampling, vacuum drying, desiccation and automation processes. Integrated vacuum and pressure gauges with regulators enable continuous monitoring and adjustment. The pump is protected by an inlet liquid trap with automatic flow stop. Intended for use with dry or aqueous vapor applications only.

Advantages

• oil-free operation
• easy to clean
• simple maintenance
• straightforward handling and control features
• compact construction

Technical data (table)
Article Number: U2534C-02
Max. pumping speed at 50 Hz: 1.7 m³/h (28.3 l/min)
Ultimate pressure: 93 mbar (≈ 70 Torr)
Wired for: 230 V, 50 Hz
Dimensions (W/D/H): 206 / 224 / 254 mm
Weight: 5.3 kg (11.7 lbs)

Technical specifications

• Article Number: U2534C-02
• Max. pumping speed (50 Hz): 1.7 m³/h (28.3 l/min)
• Ultimate pressure: 93 mbar (approx. 70 Torr)
• Electrical supply: wired for 230 V, 50 Hz
• Dimensions (W/D/H): 206 / 224 / 254 mm
• Weight: 5.3 kg (11.7 lbs)
• Protected by an inlet liquid trap with automatic flow stop
• Integrated vacuum and pressure gauges and regulators
• Intended for dry or aqueous vapor applications only
