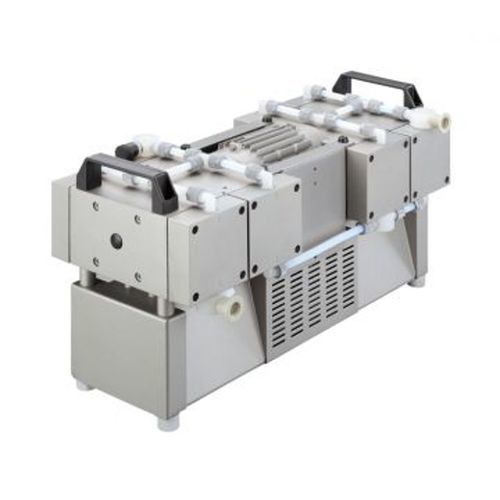

Laboratory pump MPC 1801 Z

electricdiaphragmair

Short description
Delivery time will be confirmed in the order
The Welch MPC 1801 Z chemical-resistant diaphragm pump is designed for chemical laboratory and process applications. It is built for chemical compatibility and low-noise operation, with DN16 KF intake and exhaust connections and wiring for 230V, 50/60Hz. See the diaphragm pumps category for further information.

Commercial / ordering
Article Number: 412782
Brand: Welch
Model: MPC 1801 Z

Price
Price upon request

Technical data (table)
Article Number : 412782
Number of heads / stages : 8/2'
Max. pumping speed at 50 Hz in m³/h (l/min) : 12 (200)
Max pumping speed at 60 Hz in m³/h (l/min) : 13.3 (221.7)
Max. pumping speed at 60 Hz in cfm (l/min) : 7.8 (221.7)
Ultimate pressure in mbar (Torr) : < 8
Wired for : 230V, 50/60Hz
Intake connection : DN 16 KF
Exhaust connection : DN 16 KF
Sound level (dB) : < 44
Dimensions (W/D/H) in mm : 540/300/240
Weight kg (lbs) : 32.8 (72.3)
* Without handle

Features / technical specifications

• Article Number: 412782
• Model: MPC 1801 Z
• Number of heads / stages: 8/2'
• Max. pumping speed (50 Hz): 12 m³/h (200 l/min)
• Max. pumping speed (60 Hz): 13.3 m³/h (221.7 l/min)
• Max. pumping speed (60 Hz) in cfm: 7.8 cfm (221.7 l/min)
• Ultimate pressure: < 8 mbar
• Electrical: Wired for 230V, 50/60Hz
• Intake connection: DN 16 KF
• Exhaust connection: DN 16 KF
• Sound level: < 44 dB
• Dimensions (W/D/H): 540 / 300 / 240 mm
• Weight: 32.8 kg (72.3 lbs)
• Note: Without handle
