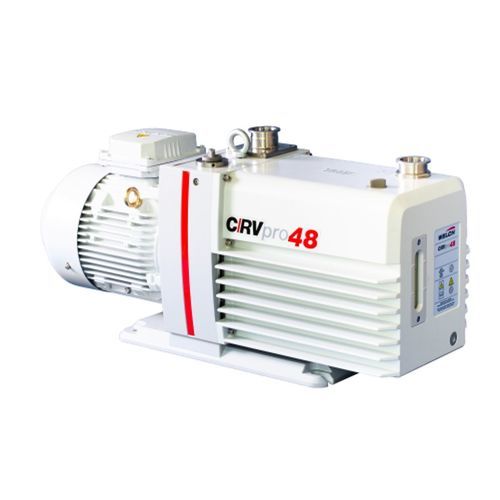

Laboratory vacuum pump CRVpro 48

rotary vanelubricated

Overview

• CRVpro family includes direct-drive rotary vane vacuum pumps with standard features: gas ballast, forced oil lubrication, anti-suckback mechanism and thermal overload protection.
• Consumes up to 36% less oil than comparable pumps.
• Operates approximately 10°C cooler than comparable pumps, reducing internal corrosion rates.
• 40% larger oil capacity than comparable pumps to help dilute aggressive condensable vapors.
• Chemical-resistant coating on the oil case and pump module to protect non-moving parts.
• Max pumping speed: 55.7 m3/h (≈928 l/min @ 50 Hz)
• Ultimate pressure: 3 x 10^-3 to 3 x 10^-4 mbar depending on conditions (see Technical data).

Applications

• Freeze drying (lyophilization)
• Vacuum ovens
• Schlenk lines
• Backing (roughing) pump for turbomolecular pumps
• Degassing
• Vessel / chamber evacuation
• Not recommended for filtration, aspiration, drying electrophoresis gels, or continuous operation above 30 torr.

Technical data (table)
PARAMETER | UNIT | CRVpro16 | CRVpro24 | CRVpro30 | CRVpro48 | CRVpro65
Free Air Displacement – @ 50 Hz | m3/h (l/min) | 18.3 (305) | 26.2 (436) | 33.1 (551) | 55.7 (≈928) | 74.3 (1,238)
Free Air Displacement – @ 60 Hz | CFM (l/min) | 12.8 (363) | 18.3 (519) | 22.1 (627) | 39.4 (1,113) | 52.5 (1,486)
Ultimate Pressure – Without gas ballast (partial) | mbar (Torr) | 3 x 10^-4 (2 x 10^-4) | 3 x 10^-4 (2 x 10^-4) | 3 x 10^-4 (2 x 10^-4) | 3 x 10^-4 (2 x 10^-4) | 3 x 10^-4 (2 x 10^-4)
Ultimate Pressure – Without gas ballast (total) | mbar (Torr) | 3 x 10^-3 (2 x 10^-3) | 3 x 10^-3 (2 x 10^-3) | 3 x 10^-3 (2 x 10^-3) | 3 x 10^-3 (2 x 10^-3) | 3 x 10^-3 (2 x 10^-3)
Ultimate Pressure – With gas ballast (total) | mbar (Torr) | 6 x 10^-3 (5 x 10^-3) | 6 x 10^-3 (5 x 10^-3) | 6 x 10^-3 (5 x 10^-3) | 6 x 10^-3 (5 x 10^-3) | 6 x 10^-3 (5 x 10^-3)
Connection flanges | DN | 25 KF | 25 KF | 25 KF | 40 KF | 40 KF
Ambient temperature | °C | 10 - 40 | 10 - 40 | 10 - 40 | 10 - 40 | 10 - 40
Noise Level (50 Hz) | dB(A) | ≤55 | ≤55 | ≤55 | ≤58 | ≤58
Oil Capacity | ml | 2400 | 2200 | 2100 | 4950 | 4300
Motor speed | rpm (50/60 Hz) | 1450/1750 | 1450/1750 | 1450/1750 | 1460/1760 | 1460/1760
Motor power | kW (50/60 Hz) | 0.7/0.85 | 0.7/0.85 | 0.7/0.85 | 2.2 | 2.2
Weight | kg | 37 | 38.5 | 39.5 | 99 | 100
Dimensions L x W x H | mm | 569 x 206 x 289 | 569 x 206 x 289 | 569 x 206 x 289 | 796 x 262 x 369 | 796 x 262 x 369


Notes

• CRVpro pumps are direct-drive rotary vane pumps with gas ballast to handle condensable vapors when used appropriately.
• Performance varies with line frequency (50 vs 60 Hz) and measurement units; refer to the table above for model-specific values.

Specifications

• Model: CRVpro 48
• Free air displacement (50 Hz): 55.7 m3/h (≈928 l/min)
• Free air displacement (60 Hz): 39.4 CFM (1,113 l/min)
• Ultimate pressure (without gas ballast, partial): 3 x 10^-4 mbar (2 x 10^-4 Torr)
• Ultimate pressure (without gas ballast, total): 3 x 10^-3 mbar (2 x 10^-3 Torr)
• Ultimate pressure (with gas ballast, total): 6 x 10^-3 mbar (5 x 10^-3 Torr)
• Connection flange: 40 KF
• Ambient operating temperature: 10–40 °C
• Noise level (50 Hz): ≤58 dB(A)
• Oil capacity: 4,950 ml
• Motor speed: 1,460 / 1,760 rpm (50 / 60 Hz)
• Motor power: 2.2 kW
• Weight: 99 kg
• Dimensions (L x W x H): 796 x 262 x 369 mm
