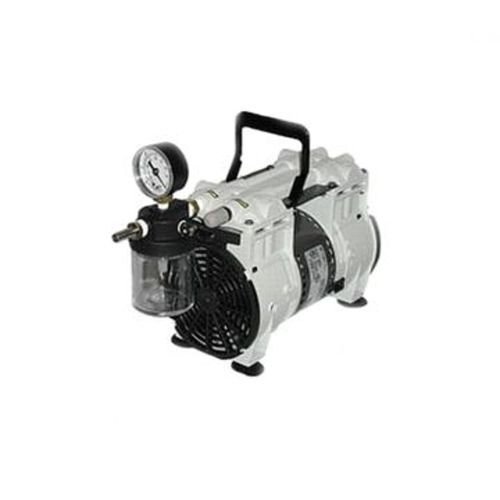

Laboratory vacuum pump WOB-L®

for filtrationpistondry

Overview
The WOB-L® 2567 dry piston pump is designed for pumping water vapour and for applications such as filtration and vacuum ovens that require pressures above 80 mbar. The oil-free, compact unit provides continuous high-flow vacuum with reduced maintenance. Supplied with an inlet liquid trap, a mounted vacuum gauge and a vacuum regulator.

Product details
Item# 2567B-50 / 2567C-02. Delivery time will be confirmed with the order. Note: pump is not recommended for pumping organic, acidic or basic vapours.

Technical data (summary)

• Article number: U2567C-50
• Max. pumping speed (50 Hz): 4.9 m³/h (81.7 l/min)
• Max. pumping speed (60 Hz): 6 m³/h (100 l/min) ≈ 3.5 cfm (100 l/min)
• Ultimate pressure: 80 mbar (≈60 Torr)
• Supply configuration: wired for 230 V, 50 Hz
• Dimensions (W/D/H): 381 / 254 / 254 mm
• Weight: 7.5 kg (16.5 lbs) — without handle

Service / Accessories

• Hydrophobic in-line filter and hose DN 6 / DN 8 - 404008
• Seal Kit for WOB-L® 2561, 2567 - U2567K-04
• Vacuum regulator for WOB-L® 2561, 2563, 2567 - U2565K-50
• Replacement container (Glass) for WOB-L® 2561, 2567, 2581, 2585 - U1415B
• Connection-Kit 5 for vacuum oven - 404005
• Connection-Kit 6 - 404006
• Post-pump protection - Exhaust Silencer for WOB-L® 2567, 2585 - U1412C
• Service Kit for WOB-L® 2567 - U2567K-03

Specifications

• Series: WOB-L®
• Model: WOB-L® Piston Pump 2567
• Intended applications: pumping water vapour, filtration, vacuum ovens (operating above 80 mbar)
• Not suitable for: organic, acidic or basic vapours
