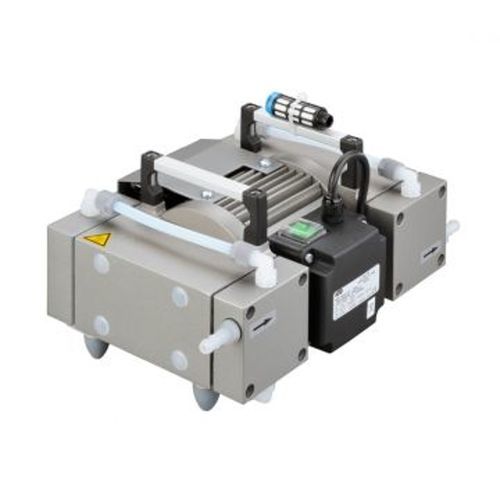

Laboratory vacuum pump MP 201T

diaphragmoil-free

Overview
Delivery time will be confirmed in the order.
The Welch Standard Duty diaphragm pump MP 201T is an oil-free vacuum pump designed for laboratory and light industrial vacuum applications. Price available on request.

Key features

• Motor power: 90 W
• Option: gas ballast valve available
• Oil-free design
• Heads / stages: product summary indicates 4 heads / 3 stages; technical table shows "3-abr"
• Price upon request

Technical data (as shown on page)
Article Number: 411543
Number of heads / stages: 3-abr
Max. pumping speed at 50 Hz in m³/h (l/min): 2 (33.3)
Max. pumping speed at 60 Hz in m³/h (l/min): 2.2 (36.7)
Max. pumping speed at 60 Hz in cfm (l/min): 1.3 (36.7)
Ultimate pressure in mbar (Torr): < 2
Wired for: 230V, 50/60Hz
Intake connection: Hose nozzle DN 8
Exhaust connection: Hose nozzle DN 8
Sound level (dB): < 45
Dimensions (W/D/H) in mm: 200/260/150
Weight: 10.3 kg (22.7 lbs)
* Without handle

Specifications / technical specifications

• Article Number: 411543
• Model / commercial designation: MP 201T
• Number of heads / stages: 3-abr (table) — product summary indicates 4 heads / 3 stages
• Motor power: 90 W
• Max. pumping speed (50 Hz): 2 m³/h (33.3 l/min)
• Max. pumping speed (60 Hz): 2.2 m³/h (36.7 l/min) — 1.3 cfm (36.7 l/min) shown for 60 Hz
• Ultimate pressure: < 2 mbar
• Electrical: wired for 230V, 50/60Hz
• Intake / Exhaust: Hose nozzle DN 8
• Sound level: < 45 dB
• Dimensions (W/D/H): 200 / 260 / 150 mm
• Weight: 10.3 kg (22.7 lbs)
• Options: gas ballast valve available
• Design: oil-free
