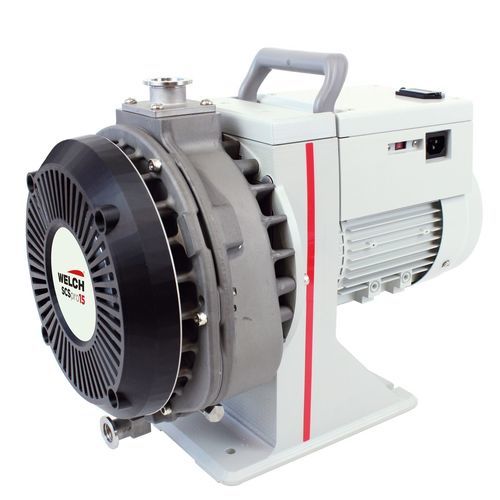

Laboratory vacuum pump SCSpro 15

scrolldry

Product overview

• Dry scroll vacuum pump SCSpro 15 providing up to 14 m3/h (9.9 CFM) and ultimate vacuum 0.012 Torr (0.016 mbar).
• Self-Cleaning function: built-in air flush removes condensed vapors from trapped applications without affecting vacuum performance.
• Durable materials:
• Scroll and body: anodized aluminum.
• Tip seal: PTFE composite.
• Exhaust valve: FKM.
• Inlet and exhaust ports: cast stainless steel.
• Max pumping speed (CFM / m3/h): 9.9 / 14
• Ultimate pressure (Torr / mbar): 0.012 / 0.016

Performance & Technical Data (summary)
Max. Pumping Speed @60Hz: 9.9 CFM
Max. Pumping Speed @50Hz: 14 m3/h
Ultimate Vacuum Pressure: 0.012 Torr / 0.016 mbar
Leak tightness: 0.012 Torr / 0.016 mbar
Max. Allowable Discharge Pressure (above atm): 5 PSI / 0.3 Bar
Ambient Temperature Range: 5 - 40 °C
Inlet Connection: NW25
Pump Inlet Orientation: Vertical
Exhaust Connection: NW16
Noise Level (typical @50Hz): <53 dBA
Motor Speed (50/60Hz): 1450 / 1740 rpm
Nominal Current (115V 60Hz): 4.3 A
Nominal Current (230V 50Hz): 2.1 A
Motor Enclosure / IP code: TEFC / IP 54
Pump Weight: 29.9 kg / 66 lbs
Dimensions (L x W x H, mm): 429 x 244 x 353 (inches: 16.9 x 9.6 x 13.9)
Certifications / Approvals: cUL / CE

Additional notes

• Built-in self-cleaning air flush does not impact vacuum performance and helps remove condensed vapors from the pump.

Technical specifications

• Model: SCSpro 15
• Max. Pumping Speed: 9.9 CFM / 14 m3/h (also described as 250 L/min in overview)
• Ultimate Pressure: 0.012 Torr / 0.016 mbar
• Leak tightness: 0.012 Torr / 0.016 mbar
• Max Allowable Discharge Pressure: 5 PSI / 0.3 Bar (above atmosphere)
• Ambient Temperature Range: 5 - 40 °C
• Inlet Connection: NW25
• Exhaust Connection: NW16
• Pump Inlet Orientation: Vertical
• Noise Level (typical @50Hz): <53 dBA
• Motor Speed (50/60Hz): 1450 / 1740 rpm
• Nominal Current: 4.3 A (115V 60Hz); 2.1 A (230V 50Hz)
• Motor Enclosure / IP code: TEFC / IP 54
• Weight: 29.9 kg / 66 lbs
• Dimensions (L x W x H): 429 x 244 x 353 mm (16.9 x 9.6 x 13.9 in)
• Materials: anodized aluminum scroll and body; PTFE composite tip seal; FKM exhaust valve; cast stainless steel inlet/exhaust ports
• Certifications: cUL / CE
