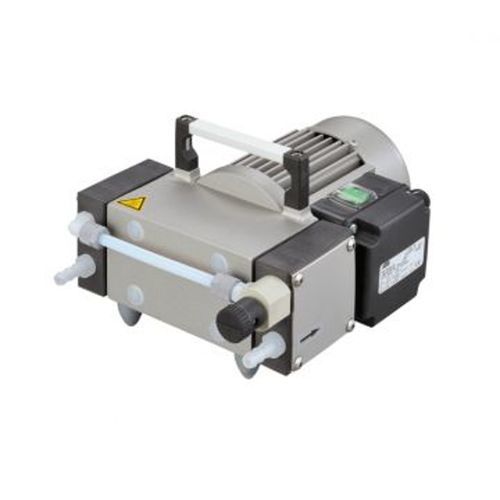

Suction pump MPC 101 Z

laboratoryelectricdiaphragm

Product overview

• Delivery time confirmed at order
• Designed for extracting contaminated gases
• Wetted parts PTFE coated for chemical durability
• Continuous oil-free operation
• Integrated gas ballast valve for condensable vapours
• Wired for 230V 50/60Hz (412522) and 115V 50/60Hz (412522-01)
• Pumping speed 50/60Hz (m3/h): 1 / 1.2
• Ultimate pressure: < 8 mbar

Description
Welch Chemical Resistant Diaphragm Pump MPC 101 Z is engineered for reliable performance in aggressive chemical environments. PTFE diaphragms and PTFE-wetted surfaces provide chemical compatibility with common laboratory solvents and acid vapours. Pump and connection heads are carbon-fiber reinforced for chemical resistance and electrical conductivity to reduce electrostatic charge and lower ignition risk of gas mixtures.

The MPC 101 Z is a compact two-stage, two-head diaphragm pump offering oil-free operation and low noise. Its design facilitates rapid maintenance and straightforward servicing to minimize downtime.

Applications / Use

• Conveying and compressing neutral and aggressive gases and vapours
• Generating vacuum down to ultimate pressure < 8 mbar
• Laboratory applications (rotary evaporators, vacuum ovens, vacuum filtration, etc.)

Scope of delivery

• 2-head chemical diaphragm pump
• Integrated motor protection switch
• Hose nozzle DN 8 (for hose inner diameter 8 mm)
• Vibration isolating feet
• External power supply and device connection cable IEC with plug (CEE, UK, US options)

Optional accessories

• Exhaust silencer
• Vacuum regulator with dial gauge (DN 8)
• Vacuum regulator with digital gauge (DN 8)
• Separator / liquid trap
• Vacuum control-box
• Hydrophobic in-line filter and hose DN 6 / DN 8
• Maintenance kit for Chemvac MPC 101 Z
• Various connection kits and inlet fittings

Technical data (table)
Article Number: 412522
Number of heads / stages: 2/2
Max. pumping speed at 50 Hz: 1 m3/h (16.7 l/min)
Max. pumping speed at 60 Hz: 1.1 m3/h (18.3 l/min)
Max. pumping speed (60 Hz) in cfm: 0.6 cfm (18.3 l/min)
Ultimate pressure: < 8 mbar (approx.)
Wired for: 230V, 50/60Hz (standard); also available wired for 115V 50/60Hz (412522-01)
Intake / Exhaust connection: Hose nozzle DN 8
Sound level: < 44 dB
Dimensions (W / D / H): 195 / 225 / 147 mm
Weight: 6.5 kg (14.3 lbs)

Technical specifications

• Article number: 412522
• Number of heads / stages: 2/2
• Max. pumping speed (50 Hz): 1 m3/h (16.7 l/min)
• Max. pumping speed (60 Hz): 1.1 m3/h (18.3 l/min)
• Ultimate pressure: < 8 mbar
• Electrical supply: 230V 50/60Hz (standard); 115V option available
• Intake connection: Hose nozzle DN 8
• Exhaust connection: Hose nozzle DN 8
• Sound level: < 44 dB
• Dimensions (W/D/H): 195 / 225 / 147 mm
• Weight: 6.5 kg (14.3 lbs)
• Materials: PTFE diaphragms; carbon-fiber reinforced pump and connection heads (chemically resistant, electrically conductive)
• Features: oil-free operation; integrated gas ballast valve for condensable vapours
