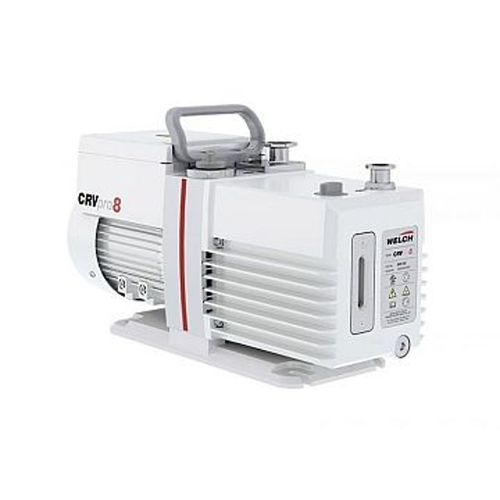

Laboratory vacuum pump CRVpro 8

rotary vanelubricatedmulti-stage

Overview

• Two-stage rotary vane pump with direct drive for laboratory and industrial backing applications.
• Consumes up to 36% less oil than comparable pumps and runs ~10°C cooler to reduce corrosion.
• 40% larger oil capacity on selected models to dilute aggressive vapors; chemical-resistant coating protects non-moving parts.
• Max pumping speed: 8 m3/h (133 l/min) at 50 Hz. Ultimate pressure (typical total): 2x10-3 mbar.

Key design features

• Gas ballast for handling condensable vapors.
• Forced oil lubrication for bearings and vanes.
• Anti-suckback mechanism to protect the system on shutdown.
• Thermal overload protection on the motor.

Applications

• Freeze drying (lyophilization) and laboratory drying applications.
• Vacuum ovens and chamber evacuation.
• Schlenk lines and general-purpose laboratory vacuum.
• Backing pump for turbomolecular pumps and degassing systems.

Notes

• Direct-drive rotary vane pumps like the CRVpro series are not recommended for prolonged filtration, sustained aspiration, drying of electrophoresis gels, or tasks requiring continuous operation above ~30 torr.

Technical data (selected)

PARAMETER | UNIT | CRVpro4 | CRVpro6 | CRVpro8 | CRVpro16 | CRVpro24
Free Air Displacement – @50 Hz | m3/h (l/min) | 4 (67) | 6 (100) | 8 (133) | 18.3 (305) | 26.2 (436)
Free Air Displacement – @60 Hz | CFM (l/min) | 2.8 (78) | 4.2 (118) | 5.6 (158) | 12.8 (363) | 18.3 (519)
Pumping speed – @50 Hz | m3/h (l/min) | 3.8 (63) | 5.1 (85) | 7.3 (122) | 16.8 (280) | 24 (400)
Pumping speed – @60 Hz | CFM (l/min) | 2.7 (77) | 3.7 (105) | 5.1 (143) | 11.9 (336) | 17 (480)
Ultimate pressure – without gas ballast (partial) | mbar (Torr) | 5x10-4 (4x10-4) | 5x10-4 (4x10-4) | 5x10-4 (4x10-4) | 3x10-4 (2x10-4) | 3x10-4 (2x10-4)
Ultimate pressure – without gas ballast (total) | mbar (Torr) | 2x10-3 (1.5x10-3) | 2x10-3 (1.5x10-3) | 2x10-3 (1.5x10-3) | 3x10-3 (2x10-3) | 3x10-3 (2x10-3)
Ultimate pressure – with gas ballast (total) | mbar (Torr) | 7x10-2 (5x10-2) | 7x10-2 (5x10-2) | 7x10-2 (5x10-2) | 6x10-3 (5x10-3) | 6x10-3 (5x10-3)
Connection flanges | DN | 16 KF | 16 KF | 16 KF | 25 KF | 25 KF
Ambient temperature | °C | 10 - 40 | 10 - 40 | 10 - 40 | 10 - 40 | 10 - 40
Noise level (50 Hz) | dB(A) | ≤50 | ≤50 | ≤50 | ≤55 | ≤55
Oil capacity | ml | 1150 | 1150 | 1000 | 2400 | 2200
Motor speed | rpm (50/60 Hz) | 1450/1740 | 1450/1740 | 1450/1740 | 1450/1750 | 1450/1750
Motor power | kW (50/60 Hz) | 0.37/0.4 | 0.37/0.4 | 0.37/0.4 | 0.7/0.85 | 0.7/0.85
Weight | kg | 21 | 22 | 22.5 | 37 | 38.5
Dimensions (L x W x H) | mm | 463/157/230* | 463/157/230* | 463/157/230* | 569/206/289 | 569/206/289
*Without handle

Technical specifications

• Model: CRVpro 8
• Brand: Welch Vacuum
• Two-stage rotary vane, direct drive.
• Max pumping speed: 8 m3/h (133 l/min) @50 Hz.
• Ultimate pressure (typical total): 2x10-3 mbar.
• Ultimate pressure (without gas ballast, partial): 5x10-4 mbar (4x10-4 Torr).
• Oil capacity: 1000 ml.
• Motor: 1450/1740 rpm (50/60 Hz), 0.37/0.4 kW.
• Noise level: ≤50 dB(A) at 50 Hz.
• Connection flange: 16 KF.
• Ambient operating temperature: 10–40 °C.
• Weight: 22.5 kg.
• Dimensions (L x W x H): 463 x 157 x 230 mm (without handle).
