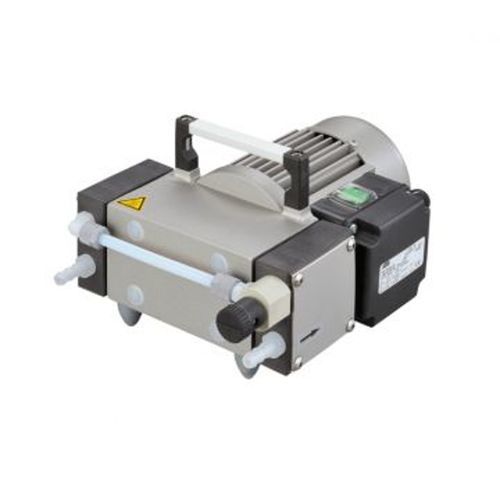

Laboratory pump MPC 201 E

suctionelectricdiaphragm

Product overview
The Welch MPC 201E chemical-resistant diaphragm pump is designed for extraction and handling of contaminated gases. Wetted parts are PTFE-coated to resist aggressive media. The pump provides continuous oil-free operation and includes an integrated gas ballast valve for safe pumping of condensable vapours. Available wired versions: 230V 50/60Hz (article 412521) and 115V 50/60Hz (article 412521-01). Performance is suitable for laboratory and light industrial sampling and ventilation tasks.<br><br>Key features

• Extraction of contaminated gases
• Wetted parts PTFE coated for chemical resistance
• Continuous oil-free operation
• Integrated gas ballast valve for condensable vapours
• Wired versions: 230V 50/60Hz (412521) and 115V 50/60Hz (412521-01)
• Pumping speed: 50 Hz = 1.8 m³/h; 60 Hz = 2.0 m³/h
• Sound level < 44 dB

Technical data

• Article number: 412521 (230V) / 412521-01 (115V)
• Number of heads / stages: 2 / 1'
• Pumping speed (50 Hz): 1.8 m³/h (30 l/min)
• Pumping speed (60 Hz): 2.0 m³/h (33.3 l/min)
• Ultimate pressure: < 75 mbar
• Intake / exhaust connection: Hose nozzle DN 8
• Wired for: 230V, 50/60Hz and 115V, 50/60Hz
• Sound level: < 44 dB
• Dimensions (W/D/H): 195 / 225 / 147 mm
• Weight: 6.5 kg (14.3 lbs) * without handle
• Wetted parts: PTFE coated
• Gas ballast valve: integrated (for condensable vapours)

Applications

• Laboratory gas extraction and sampling
• Chemical sampling and condensable vapour handling
• Analytical instrumentation and process monitoring
• Light industrial fume extraction
