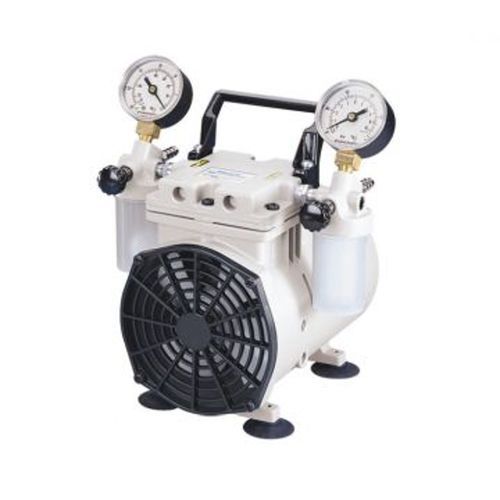

Laboratory vacuum pump WOB-L® 2522

for filtrationpistondry

Product overview
WOB-L® 2522 dry piston pump. Item numbers 2522B-01, 2522C-02. The pump delivers oil-free vacuum and compression for laboratory and physical applications, notably compatible with aqueous solutions. Typical uses include filtration, gas sampling, vacuum drying, desiccation and automation technology. Integrated vacuum and pressure gauges and regulators allow continuous monitoring and adjustment. An inlet liquid trap with automatic flow stop protects the pump during operation with aqueous vapors. For use with dry or aqueous vapor applications only.

Advantages

• oil-free operation (no contamination from lubricants)
• easy to clean
• simple maintenance
• straightforward handling and integrated control features
• integrated inlet liquid trap with automatic flow stop

Service / Accessories (examples)

• Hydrophobic in-line filter and hose DN 6 / DN 8 - 404008
• Maintenance Kit for WOB-L® 2522 - U2522K-03
• Seal Kit for WOB-L® 2522 - U2522K-04
• Vacuum regulator for WOB-L® 2522, 2534, 2546 - U2522K-05
• Pressure regulator for WOB-L® 2522, 2534, 2546 - U2522K-06
• Plastic replacement container for WOB-L® 2522, 2534, 2546 - U1415C
• Pressure Filtration Kit - 404009

Technical data (table)
Article Number - U2522C-02
Max. pumping speed at 50 Hz in m³/h (l/min) - 1.1 (18.3)
Max pumping speed at 60 Hz in m³/h (l/min) - 0.76 (22)
Max. pumping speed at 60 Hz in cfm (l/min) - 0.76 (22)
Ultimate pressure in mbar (Torr) - 133
Wired for - 230V, 50Hz
Dimensions (W/D/H) in mm - 206/224/254
Weight kg (lbs) - 5.3 (11.7)

Usage notes
Suitable as vacuum pump and compressor where oil-free operation is required. The inlet liquid trap with automatic flow stop protects the pump when handling aqueous vapors. Use only for dry gases or aqueous vapor applications; avoid liquid ingestion beyond the trap capacity.

Technical specifications

• Model designation: WOB-L® 2522
• Item numbers: 2522B-01, 2522C-02
• Max. pumping speed (50 Hz): 1.1 m³/h (18.3 l/min)
• Max. pumping speed (60 Hz): 0.76 m³/h (22 l/min)
• Ultimate pressure: 133 mbar (Torr)
• Electrical supply: 230 V, 50 Hz
• Dimensions (W/D/H): 206 / 224 / 254 mm
• Weight: 5.3 kg (11.7 lbs)
• Design: oil-free dry piston pump
• Integrated features: vacuum and pressure gauges and regulators; inlet liquid trap with automatic flow stop
• Intended media: dry gases or aqueous vapors
