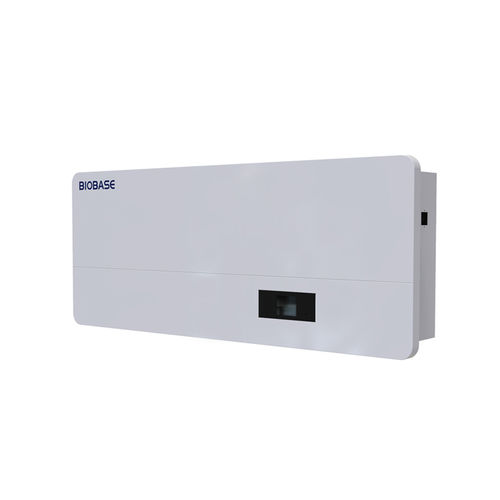

Wall-mounted air purifier BK-B-1000-D

plasmawith remote controloperating room

Overview:
The unit consists of a plasma sterilization chamber and a dust-collection chamber. The sterilization chamber generates electrons, ions, excited atoms, molecules and active free radicals that inactivate airborne bacteria, viruses, fungi and other pathogenic microorganisms. The dust-collection chamber captures charged dust particles passing through the sterilization zone.

Applications:

• General operating rooms
• Delivery rooms
• Hematology wards
• Burn wards
• Protective isolation rooms
• Intensive care units (ICU)
• Disinfection supply centers
• Intensive dialysis centers
• Examination and treatment rooms
• Infectious disease consultation rooms

Key features:

• Designed for safe operation in occupied spaces (human–machine coexistence)
• Removes organic gases and hospital odors
• High sterilization efficiency with effective dust capture
• Real-time indoor air temperature monitoring
• Three-speed adjustable fan
• Multiple operating modes: manual, timed, temporary
• Six program-controlled timed disinfection groups
• Automatic accumulation of operating hours
• LCD display and far-infrared remote control

Technical specifications:

• Model: BK-B-1000-D
• Circulating air flow: 1000 m³/h
• Applicable room volume: 100 m³
• Plasma generator life: ≥8000 h
• Plasma concentration: 8.46×10^16 – 2.03×10^17 ions/m³
• Electric field intensity (sterilization area): 8000 V
• Electric field intensity (dust-collection area): 4000 V
• O₃ residue: ≤0.02 mg/m³
• Sterilization rate (Staphylococcus Albicans): >99.9%
• Average extinction rate (natural bacteria): >92%
• Input power: ≤80 W
• Power supply: AC 220 V 50 Hz (standard); 110 V 60 Hz (optional)
• External dimensions (W×D×H): 1110 × 420 × 170 mm
• Package dimensions (W×D×H): 1160 × 494 × 263 mm
• Gross weight: 24.5 kg

Ordering / product information:

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: within 7 days
• Supply capacity: factory direct supply
