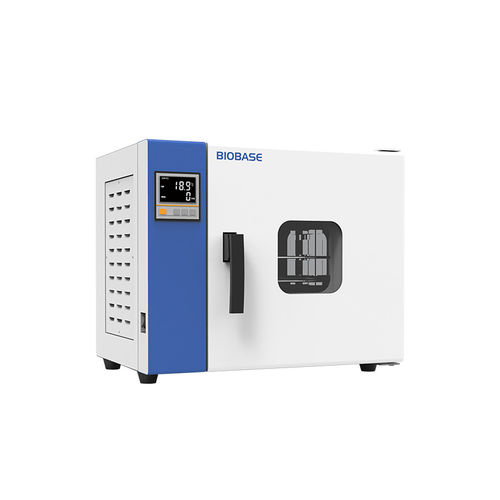

Medical sterilizer BJPX-SH23

laboratoryfor sterilization servicesCSSD

Brand & product information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Models: BJPX-SH23, BJPX-SH55, BJPX-SH88, BJPX-SH105, BJPX-SH140, BJPX-SH200

Application
Dry-heat sterilizer for items tolerant to high temperature: glassware, porcelain, gelatin sponge, liquid paraffin, vaseline, ointments, powders and metal surgical instruments. Suitable for laboratories, clinics and medical sterilization departments.

Key features

• Maximum temperature up to 250°C for effective dry-heat sterilization.
• PT100 temperature sensor and precise control to reach and maintain set sterilization temperature.
• Forced convection circulation to improve temperature uniformity across the chamber.
• Observation window for visual monitoring and integrated timer for hands-free cycles.

Technical parameters (selected)
Model: BJPX-SH23 / BJPX-SH55 / BJPX-SH88 / BJPX-SH105 / BJPX-SH140 / BJPX-SH200
Capacity: 23L / 55L / 88L / 105L / 140L / 200L
Circulation mode: Forced convection
Temperature control: PT100; Range RT+10 ~ 250°C; Fluctuation ±3°C; Uniformity ±5°C
Chamber material: 201 stainless steel
Chamber size (W*D*H) mm: 256*263*314 / 356*340*414 / 433*363*470 / 435*457*500 / 604*463*558 / 605*491*658
Shelf sizes (mm): model-dependent, 2 pcs standard (optional additional shelves)
Power consumption: 600W / 1000W / 1200W / 1600W / 2000W / 2300W (by model)
Power supply: AC220V 50/60Hz (standard); AC110V optional with external transformer
Operating ambient: 5 ~ 40°C; Altitude <2000m
Net/Gross weight and external/package dimensions vary by model (see technical list)

Accessories & supply

• Standard accessories: 2 shelves
• Optional accessories: additional shelves
• Factory direct supply; typical lead time within 7 days
